Bell And Gossett 112097 Inline Air Separator (1-1/2 inches) Replacement 112097

Product Description

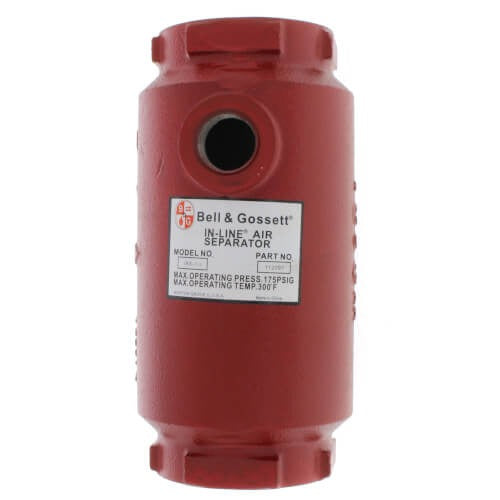

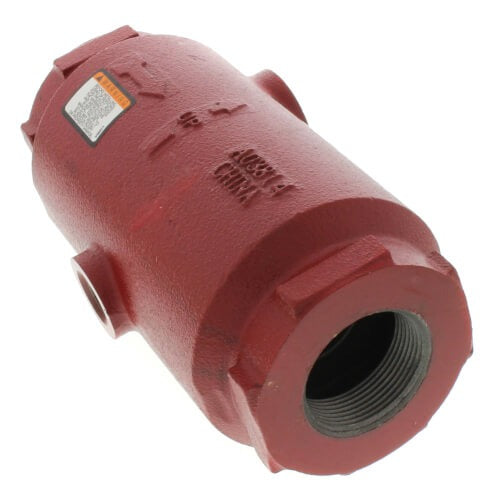

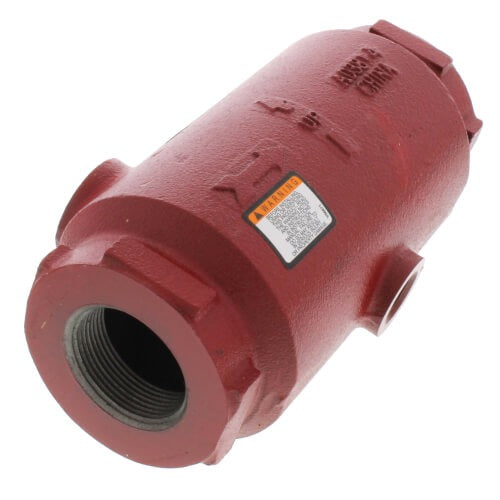

Bell and Gossett 112097 is an in-line air separator designed to remove entrained air from circulating water in hydronic heating and cooling systems. The unit features a one-piece cast iron body with threaded FNPT x FNPT connections, a maximum working pressure of 175 psig (1,207 kPa), and a maximum operating temperature of 300°F (149°C). It is sized for 1-1/2 inch piping and is used in closed-loop HVAC and commercial hydronic installations.

• One-piece cast iron body with threaded FNPT x FNPT connections
• Maximum working pressure 175 psig (1,207 kPa) and maximum operating temperature 300°F (149°C)
• Sized 1-1/2 inch; flow capacity rated to 35 GPM

Product Highlights

In-line cast iron air separator for hydronic heating and cooling; 1-1/2" connections, 175 psig, 300°F, 35 GPM

Product Information

Standard Information

• Brand: BELL AND GOSSETT
• Manufacturer Part Number: 112097
• Country of Origin: United States
