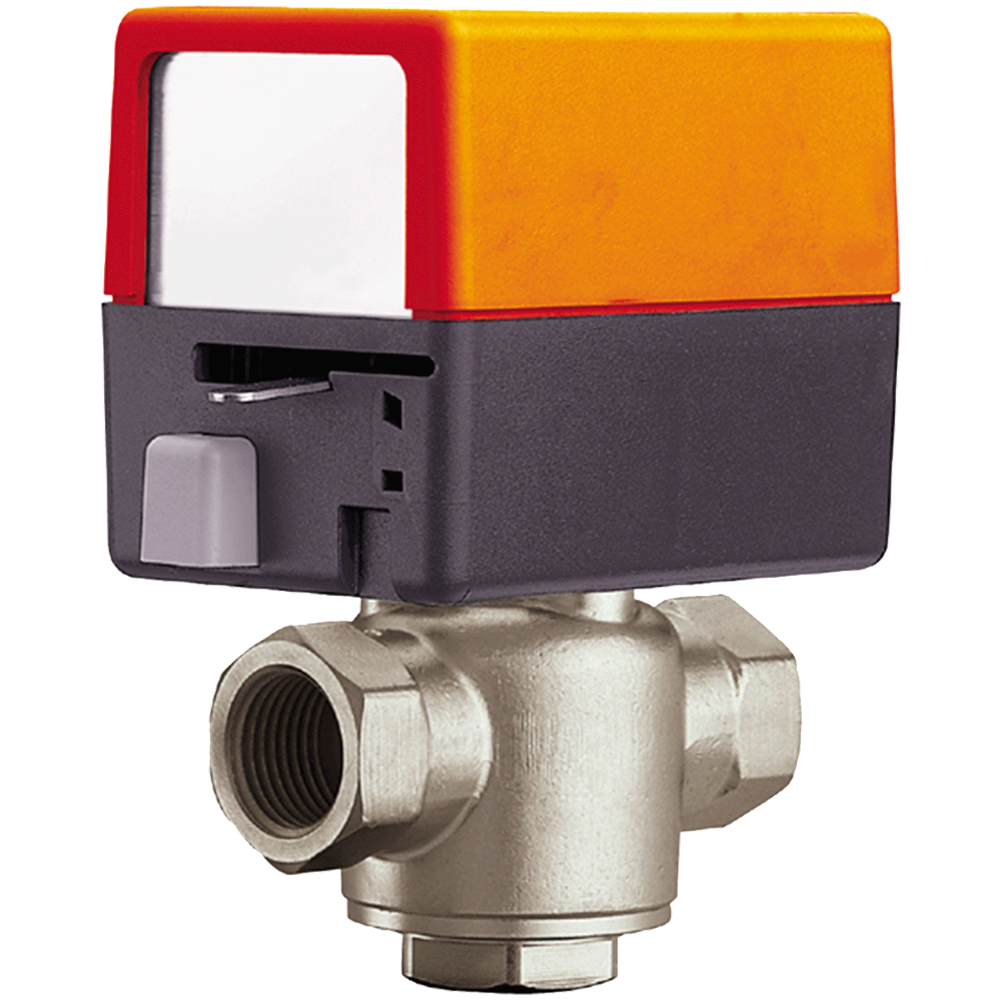

Belimo Zone320n-50+zone24nc-s Zone Valve 0.75 inches 5 Cv

Product Description

The BELIMO ZONE320N-50+ZONE24NC-S is a zone valve with a 0.75" size and a 5 Cv rating. It is a 3-way valve with a spring return actuator and on/off control. Designed for use with chilled or hot water with up to 50% glycol. The valve features a stainless steel trim and an internal thread end fitting.

• Valve Size: 0.75"
• Cv Rating: 5
• Control Type: On/Off

Product Highlights

The BELIMO zone valve is ideal for controlling the flow of chilled or hot water in HVAC systems.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: ZONE320N-50+ZONE24NC-S

Technical Specifications

• Angle of Rotation: 90
• Cv: 5
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 50% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.75"
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPST
• Control Type: On/Off
• Degree of Protection: IP20 NEMA 1
• Electrical Connection: cable
• Manual Override: Hand lever
• Power Consumption (Running): 6.5 W
• Running Time (Fail-safe): <5 s
• Voltage AC/DC: AC 24 V
• Voltage: 24Vac
• Run Time: 20-40 Secs
• Fail-Safe: Spring Return - Normally Closed/Normally Open
• Connection: NPT
• Aux. Switch: 1
• Valve Piping: 3-Way
• Close-Off Rating: 25 PSI
• Valve Part Number: ZONE320N-50
• Actuator Part Number: ZONE24NC-S
• Fluid temperature: 32...212 F [0...100 C]
• Body Pressure Rating: 300 psi
• Power Consumption For Wire Sizing: 7 VA
• Enclosure Type: UL Enclosure Type 1
• Protection category: IP20
• Valve Pattern: 3-Way
• Connection Type: NPT
• CV Rating: 5
• GPM: 10 @ 4 psi
• Control Signal: On/Off
• Auxillary Switch: None
• Actuator type: Electric
• Fail safe: Spring Return
• Flow coefficient: 5 Cv
• Series: Belimo
• Short desc: 3/4 Inch, 3-way, Ball, 5 Cv, Spring Return, 24 VAC
• Size: 3/4 Inch
• Supplier part number: ZONE320N-50+ZONE24NC-S
• Degree Of Protection NEMA: NEMA 1
