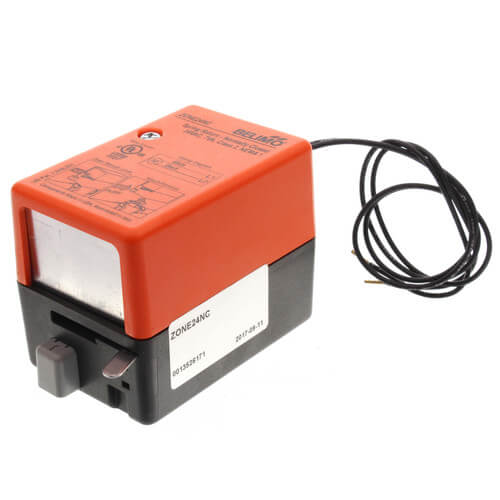

Belimo ZONE24NC Valve Actuator Spring Return 24V Normally Closed

Product Description

The Belimo ZONE24NC is a valve actuator that operates at 24 volts and is normally closed. This unit is an ideal solution for HVAC control systems where precise on/off operation is required. Designed for ease of installation, it integrates seamlessly into existing systems, ensuring reliable temperature and pressure control.

• Power Consumption: 6.5 watts running
• Temperature Range: 32 F to 104 F
• Electrical Connection: Features eighteen-inch wire leads

Product Highlights

This actuator utilizes a spring return mechanism for fail-safe operation, returning to a preset position when not powered.

Product Information

Standard Information

• Brand: Belimo
• MPN: ZONE24NC

Technical Specifications

• Actuator Type: Spring return
• Control Type: On/Off
• Angle of Rotation: 90 degrees
• Degree of Protection: IP20 NEMA Type 1
• Electrical Connection: Eighteen-inch wire leads
• Power Consumption: 6.5 watts running
• Operating Conditions: 32 F to 104 F (0 C to 40 C)
• Running Time (Fail-safe): Less than 5 seconds
• Voltage: AC 24V
