Belimo ZONE225N-80+ZONE24NC Zone Valve 1 inches 2-Way Replacement MPN

Product Description

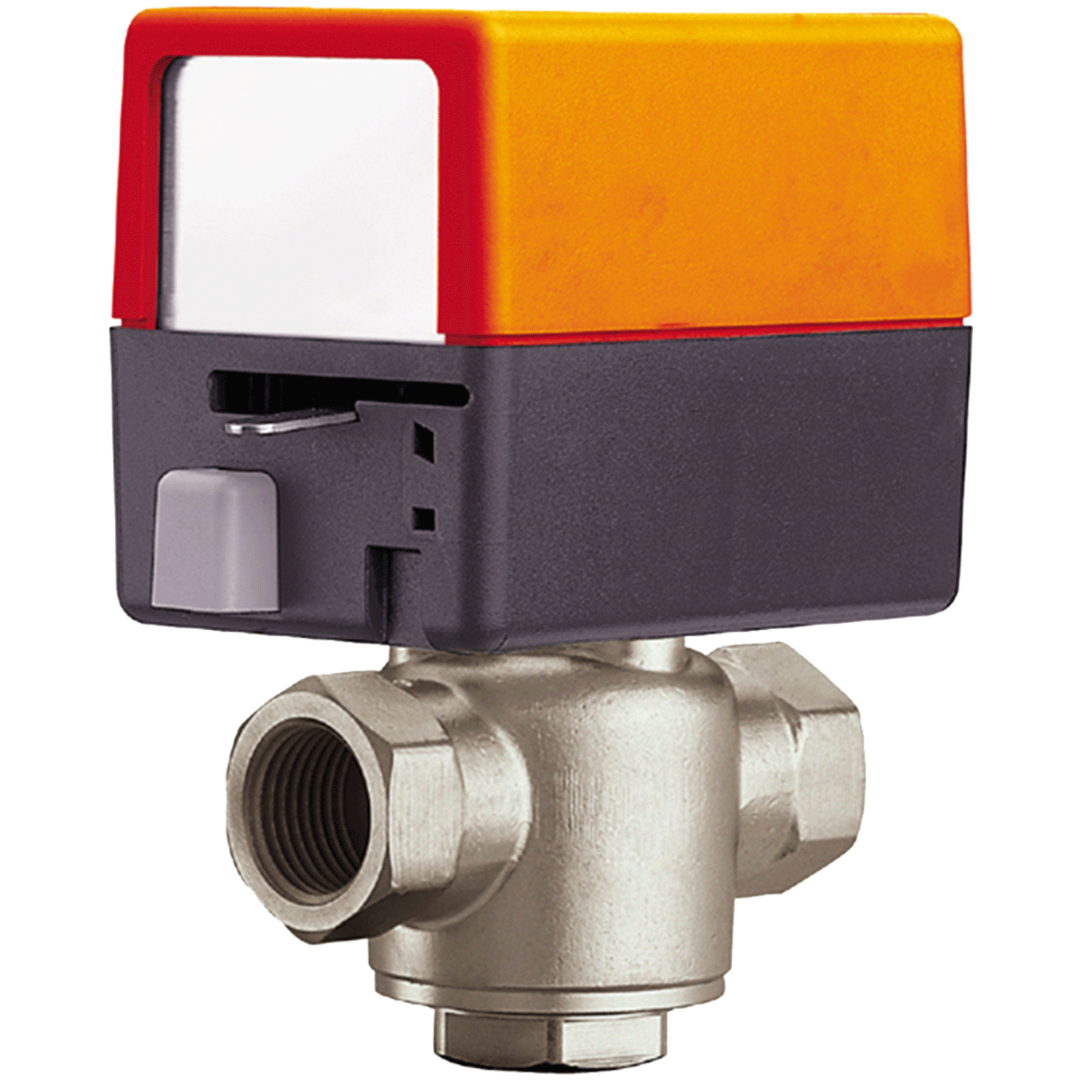

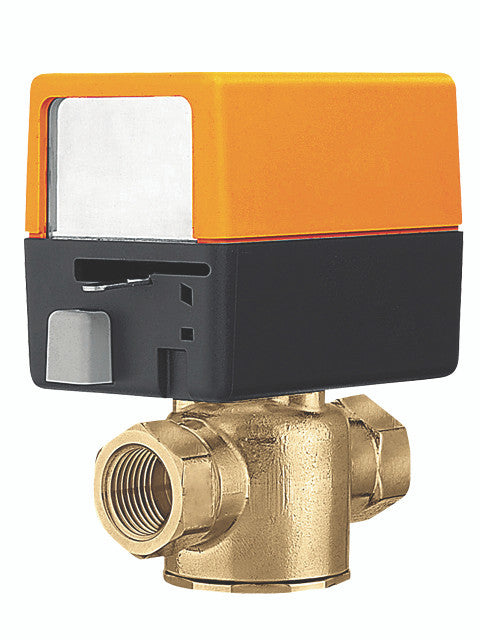

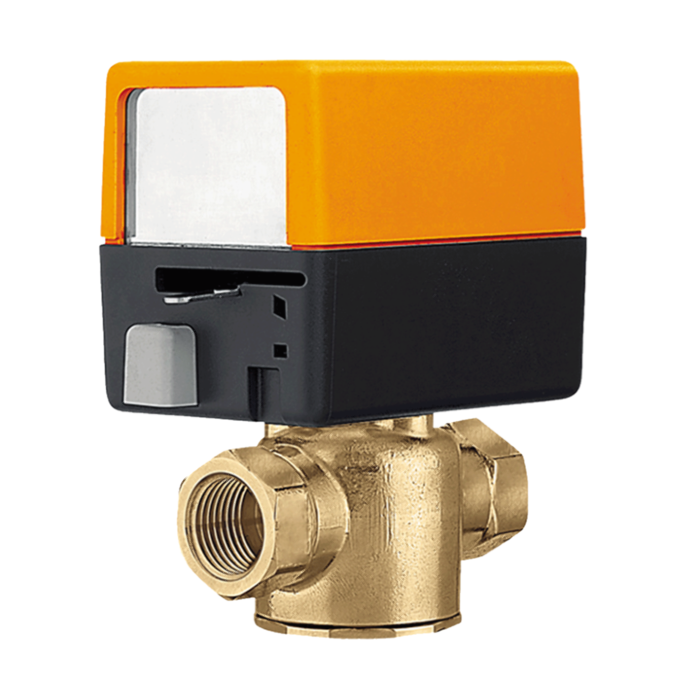

The BELIMO ZONE225N-80+ZONE24NC zone valve is a 2-way on/off valve with a nominal size of 1 inch. Constructed with a forged brass body and stainless steel stem, it handles chilled or hot water in fan coil units, baseboard, and hydronic systems. It is designed for use in hydronic systems with variable or constant flow.

• Suitable for hydronic systems with variable or constant flow
• Designed for compact areas requiring on/off control
• Valve timing of 5 seconds

Product Highlights

This Belimo zone valve is ideal for controlling hot and chilled water in HVAC systems.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: ZONE225N-80+ZONE24NC

Technical Specifications

• Actuation Type: Electrical
• Applicable Standard: ANSI, UL (Canada and US), CE, ISO 9001
• Application: Fan Coil Units, Baseboard, Hydronic System
• Body Material: Forged Brass
• CATALOG NUMBER: ZONE225N-80+ZONE24NC
• Category: HVAC/R & Fans
• End Connection: Female Threaded x Female Threaded
• Input Supply Rating: 24 Volt AC/120 Volt AC (Zone Valve), 120 Volt AC 50/60 Hertz (Actuator)
• Manufacturer Name: Belimo
• Manufacturer Part Number: ZONE225N-80+ZONE24NC
• Manufacturer Part Number Additional: Z2ZN0136
• Media Handled: Chilled or Hot Water
• Nominal Size: 1 Inch x 1 Inch
• Pressure Rating: 300 PSI
• Temperature Rating: 32 to 212 Deg F
• Type: 2-Way, On/Off
• UNSPSC Code: 40141600
• UPC: 950095037479
• Valve Position: NO
• Valve Timing: 5 Second
• Housing: NEMA Type 1, IP20
• Service: Chilled Or Hot Water, Up To 50% Glycol
• Power Consumption: 6.5 W Running
• Close-Off Pressure: 20 psi
• Flow Characteristic: On/Off
• Operating Conditions: 32 F To 104 F (0 C To 40 C)
• Electrical Connection: 18 in. Wire Leads
• Angle of Rotation: 90
• Cv: 8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 50% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 1" [25]
• Actuator Type: Spring return
• Control Type: On/Off
• Degree of Protection: IP20 NEMA 1
• Manual Override: Hand lever
• Voltage AC/DC: AC 24 V
• Fail-Safe: Spring Return - Normally Closed
• Connection: NPT
• Valve Piping: 2-Way
• Control Signal: On/Off
• Close-Off Rating: 20 PSI
• Valve Part Number: ZONE225N-80
• Actuator Part Number: ZONE24NC
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Auxillary Switch: 1 SPST
• Body Pressure Rating: 300 psi
• Enclosure Type: UL Enclosure Type 1
• Fluid temperature: 32...212 F [0...100 C]
• Power Consumption For Wire Sizing: 7 VA
