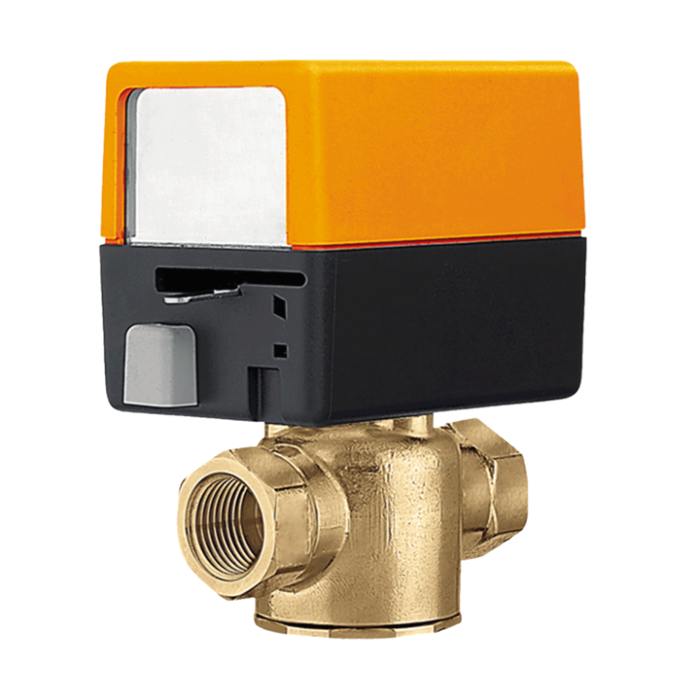

Belimo ZONE225N-80 Zone Valve 2 Way 1 in 8 Cv

Product Description

Belimo ZONE225N-80 is a two-way zone valve designed for hydronic systems. This valve features a one-inch size and an eight Cv rating. It is suitable for use in systems with variable or constant flow. The valve fits in compact areas, making it ideal for on/off or control applications utilizing 24 VAC or 120 VAC.

• Suitable for hydronic systems with chilled or hot water flow.
• Forged brass body with stainless steel stem.
• Compatible with up to 50% glycol.

Product Highlights

This valve offers a reliable solution for temperature control in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: ZONE225N-80

Technical Specifications

• Cv: 8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 50% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 1 inch (25 mm)
• Close-Off Pressure: 20 psi
• Operating Conditions: 32 F to 212 F (0 C to 100 C)
