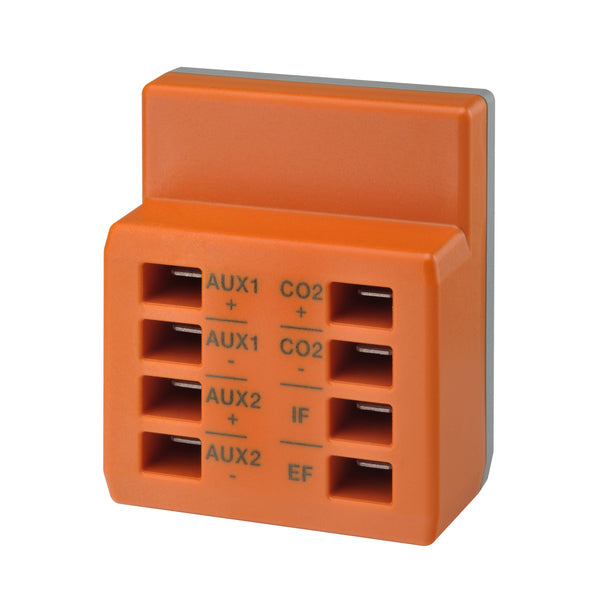

Belimo ZIP-EM Econ-Zip-EM ZIP Economizer Energy Module for CO2 Control

Product Description

The BELIMO ZIP-EM Econ-Zip-EM ZIP Economizer Energy Module has full functionality when connected to the ECON-ZIP-Base. It provides additional I/Os to offer higher control functionalities that will save energy and will meet new and future minimum code requirements. The Energy Module is needed for CO2 sensors, Indoor Fan, and Exhaust Fan.

• Auto-detection of inputted devices and non-proprietary sensors
• Needed for CO2 sensors
• Plug and play capability offers quick set up

Product Highlights

The ZIP Economizer Energy Module provides additional I/Os to offer higher control functionalities that will save energy and will meet new and future minimum code requirements.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: ZIP-EM
• Country of Origin: United States

Technical Specifications

• Brand: Belimo
• MPN: Econ-Zip-EM
• Type: Economizers
• Model: Econ-Zip-EM
• Country of Origin: United States
• Category: Business & Industrial
• Ambient temperature: -40...158°F [-40...70°C]
• Non-operating temperature: -40...176°F [-40...80°C]
• Ambient humidity: 5...95% r.H. non-condensing
• Agency Listing: EMC according to UL60730-1
• Connectors: 1/4" male spade connectors
• Housing material: UL94-5V
• Nominal voltage: AC
• Environmental: RoHS, Conformally coated
• Rated Impulse Voltage: 800V
• Supported CO2 Sensor: 0-10 VDC, Sensor auto-detection
• Auxiliary Input - Remote Potentiometer: 2-10VDC
• Auxiliary Input - Purge Contact: On/Off - 24 VAC, 50/60HZ - Current Load min 10mA
• Indoor Fan Speed Selection: 100'000 cycles @ inrush current of 3.5A, normal current 1.5A Impedance for Auto detection @ 24V: <600Ohm @ 60Hz, <800Ohm @ 50Hz
• Exhaust Fan Selection: 100'000 cycles @ inrush current of 3.5A, normal current 1.5A, Impedance for Auto detection @ 24V: <600Ohm @ 60Hz, <800Ohm @ 50Hz
• Product family: Economizer
