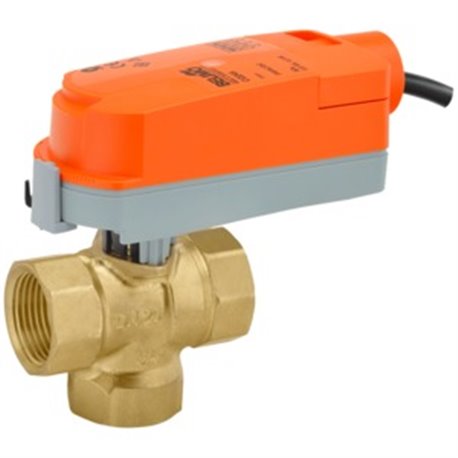

Belimo Z3075QS-J+CQKB24-RR ZoneTight 0.75 3 Way 4.6 Cv Sweat w/ Electronic Fail-Safe 24V On/Off

Product Description

The Belimo Z3075QS-J+CQKB24-RR is a control valve designed for efficient operation in HVAC systems. This valve features a 0.75 inch size and a three-way configuration, allowing for versatile flow control in chilled or hot water applications. The built-in electronic fail-safe mechanism ensures reliable operation even during power outages.

• Rated Cv of 4.6 for optimal flow control
• Designed for 24V AC/DC operation
• Utilizes sweat fitting connections for secure installation

Product Highlights

Ideal for chilled or hot water applications, this valve is suited for settings requiring reliable control and efficiency.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z3075QS-J+CQKB24-RR

Technical Specifications

• Valve Size: 0.75 [20]
• Cv: 4.6
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Trim: Chrome plated brass
• Actuator Type: Electrical fail-safe
• Control Type: On/Off
• Degree of Protection: IP40 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <60 s
• Running Time (Motor): 75 s / 90B0
• Angle of Rotation: 90
• Pressure Independent: NO
