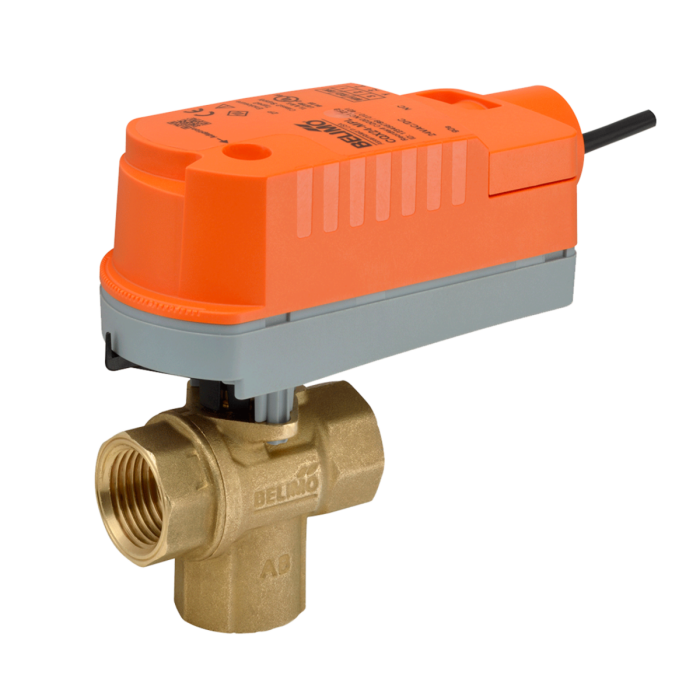

Belimo Z3075QJ+CQKB24SLL Zonetight Valve Assembly 3 Way 3/4 in. Replacement MPN

Product Description

The Belimo Z3075QJ+CQKB24SLL is a 3-way zonetight valve assembly designed for HVAC applications. This component is ideal for regulating flow in large commercial buildings, allowing for efficient control over heating and cooling systems.

• Quick Connect Valve, NPT.
• Forged Brass Body with Chrome Plated Ball and Stem.
• 12 in-lb electronic fail-safe actuator.

Product Highlights

This valve assembly offers higher close-off capability and flexibility in flow, making it suitable for changing flow requirements.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z3075QJ+CQKB24SLL

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Linear
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
