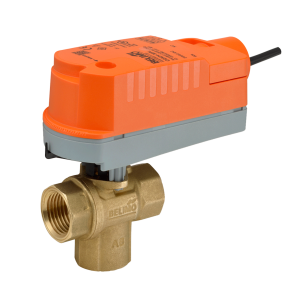

Belimo Z3075Q-J+CQKB24-RR Zonetight Valve Assembly 3 Way 3/4 in.

Product Description

The Belimo Z3075Q-J+CQKB24-RR is a zonetight valve assembly designed for efficient control in HVAC systems. This 3-way valve features a three quarter inch connection, allowing it to manage flow effectively in heating and cooling applications. Built with a forged brass body, it ensures durability and reliability in demanding environments.

• Designed for large commercial buildings
• Tool-free assembly for easy installation
• Direct coupled actuator for precise control

Product Highlights

This valve is suited for high close-off scenarios and fits into space-restricted areas, making it versatile for various setups.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z3075Q-J+CQKB24-RR

Technical Specifications

• Flow Characteristic: Linear
• Close-Off Pressure: 75 psi
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Operating Conditions: 35°F to 104°F (1.7°C to 40°C)
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit connector
• Service: Chilled, hot water, up to 60% glycol
• Housing: NEMA 2, IP40
