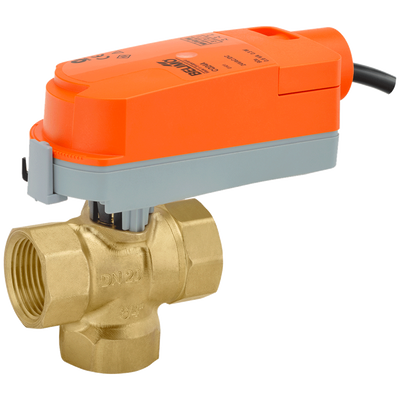

Belimo Z3050QS-H+CQBUP-3 ZoneTight Valve 3 Way 0.5 inch Sweat Non-Spring Actuator 110-240V

Product Description

The Belimo Z3050QS-H+CQBUP-3 is a high-performance valve and actuator designed for precise control in HVAC systems. Ideal for applications requiring reliable regulation of fluid flow in chilled or hot water systems, this model is equipped with a non-spring actuator and operates on a voltage range from 110 to 240 volts.

• Chrome plated brass trim enhances durability and longevity.
• Features a compact 3-way sweat fitting for easy installation in tight spaces.
• IP40 NEMA 2 protection rating ensures robust performance in various environmental conditions.

Product Highlights

With its 90-degree angle of rotation and 2.7 Cv, this valve offers precise fluid control, making it suitable for a wide range of commercial and industrial applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z3050QS-H+CQBUP-3

Technical Specifications

• Valve Size: 0.5 inch
• Control Type: Floating/3-point
• Voltage AC/DC: AC 100 to 240 volts
• Actuator Type: Non fail-safe
• Fluid: Chilled or hot water up to 60% glycol
• Power Consumption: 1 watt running, 0.7 watt holding
• Running Time (Motor): 75 seconds at 90 degrees
• Connection Type: Cable
