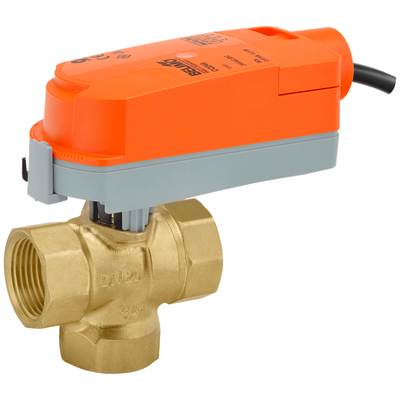

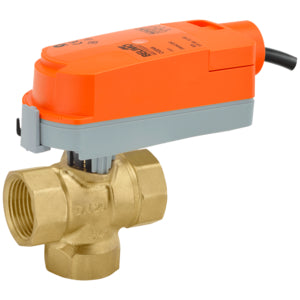

Belimo Z3050QS-H+CQB24-3 Actuator Valve 24V 0.5 inch 3-Way 2.7 Cv Sweat Non-Spring Replacement Z3050QS-H+CQB24-3

Product Description

The Belimo Z3050QS-H+CQB24-3 is a high-performance zone control valve designed for HVAC systems. It enhances system efficiency with precise control over water flow in heating and cooling applications.

• Efficient flow control with a 2.7 Cv rating
• Durable construction with chrome-plated brass trim
• Non-spring actuator with floating/3-point control

Product Highlights

Equipped with a 24V AC/DC motor, this valve ensures reliable operation under varying electrical conditions. It offers IP40 NEMA2 protection, making it suitable for use in both commercial and industrial settings.

Product Information

Standard Information

• Brand: Belimo
• Category: HVAC & Hydronics Actuators

Technical Specifications

• Valve Size: 0.5 inch
• Valve Pattern: 3-way
• Flow Coefficient (Cv): 2.7
• Connection Type: Sweat
• Angle of Rotation: 90 degrees
• Control Type: Floating/3-point
• Actuator Type: Non fail-safe
• Electrical Connection: Cable
• Voltage: AC/DC 24V
• Protection: IP40 NEMA2
