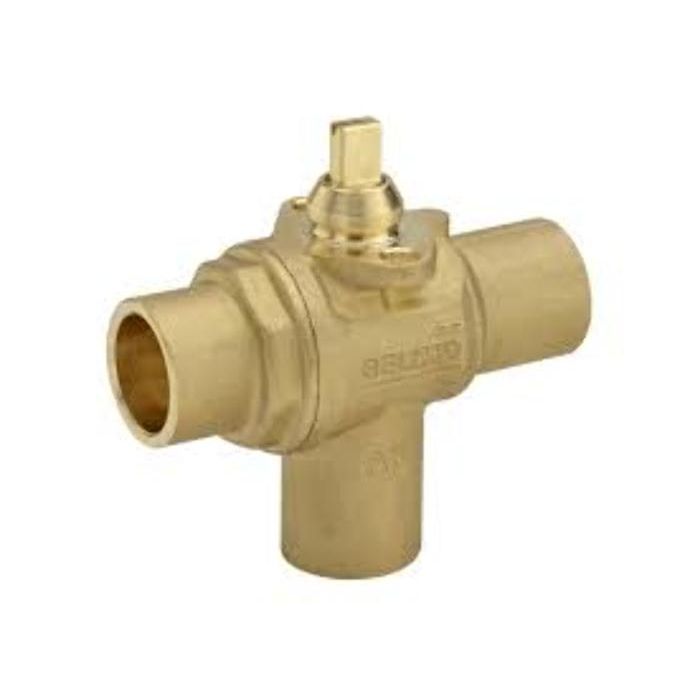

Belimo Z3050QS-E Zonetight Valve 3 Way 1/2 in. 1 Cv

Product Description

BELIMO Z3050QS-E is a Zonetight Valve designed for efficient flow control in HVAC systems. This 3-way, 1/2 inch valve features a 1 Cv flow capacity and a forged brass body with a chrome-plated brass ball and stem. It is suitable for chilled and hot water applications, including up to 60% glycol mixtures, operating within a temperature range of 36 F to 212 F (2 C to 100 C). The quick-connect sweat end fitting ensures easy installation.

• Suited for large commercial buildings requiring higher close-off pressure and adjustable flow.
• Designed for installation in space-restricted areas, allowing tool-free assembly.
• Features a forged brass body and chrome-plated brass trim for durability and reliable performance.

Product Highlights

Compact 3-way Zonetight valve with quick-connect sweat fitting, ideal for chilled and hot water systems.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: Z3050QS-E

Technical Specifications

• Service: Chilled, Hot Water, Up To 60% Glycol
• Close-Off Pressure: 75 psi
• Flow Characteristic: Linear
• Operating Temperature: 36 F To 212 F (2 C To 100 C)
• Cv: 1
• End Fitting: Sweat
• Valve Pattern: 3-way
• Pressure Independent: NO
• Trim Material: Chrome plated brass
• Valve Size: 0.5"
