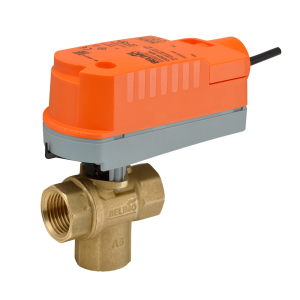

Belimo Z3050Q-H+CQKB24-S-LL Zonetight Valve Assembly, 3 Way, 1/2 in.

Product Description

The Belimo Z3050Q-H+CQKB24-S-LL is a zonetight valve assembly designed for use in commercial settings. This three-way valve facilitates effective flow control and can be integrated into a variety of HVAC systems. Ideal for applications requiring reliable performance, this valve supports a flow rate of 2.7 Cv and operates efficiently within a temperature range of thirty-five to one hundred four degrees Fahrenheit.

• 3-way configuration for versatile system integration.
• Built with a forged brass body and chrome plated components.
• Electrical fail-safe actuator ensures consistent operation.

Product Highlights

This valve is suitable for large commercial buildings where higher close-off capabilities and flow adjustments are essential.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z3050Q-H+CQKB24-S-LL

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled or hot water, up to sixty percent glycol
• Power Consumption: 2.5 W running, 0.5 W holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Linear
• Operating Conditions: 35 F to 104 F (1.7 C to 40 C)
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit connector
• Angle of Rotation: 90 degrees
• Trim: Chrome plated brass
