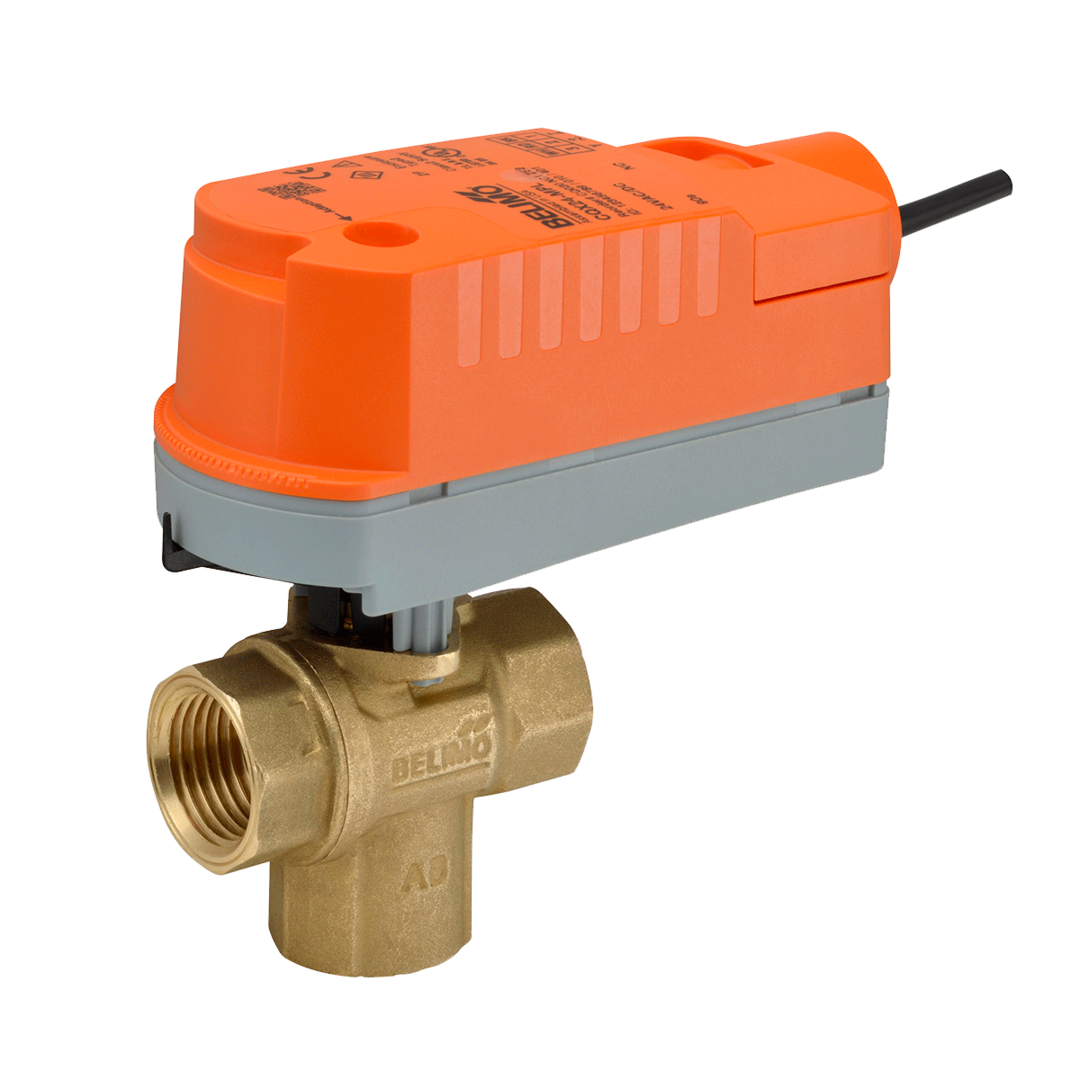

Belimo Z3050Q-H+CQKB24-RR Zonetight Valve Assembly 3 Way 1/2 in.

Product Description

The Belimo Z3050Q-H+CQKB24-RR is a zonetight valve assembly designed for efficient control in commercial HVAC systems. This three-way valve offers a half-inch connection and is ideal for managing hot and chilled water flow. It features a direct-coupled actuator and an electronic fail-safe mechanism to ensure reliable operation.

• Tool-free assembly for easy installation
• Direct-coupled actuator with 12 in-lb torque
• Commonly used for unit ventilators and fan coil units

Product Highlights

This valve assembly is suited for applications requiring higher close-off pressures and flexible flow adjustments. It accommodates both chilled and hot water, making it effective for diverse HVAC needs.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z3050Q-H+CQKB24-RR

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 2.5 W running, 0.5 W holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Linear
• Operating Conditions: 35 F to 104 F (1.7 C to 40 C)
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit connector
