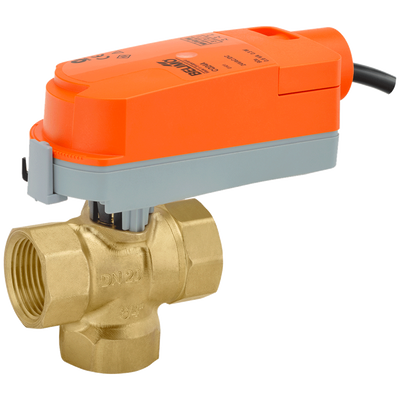

Belimo Z3050Q-H+CQBUP-3 ZoneTight 3-Way Valve 0.5 Inches 1 Cv Non-Spring Return 110 to 240V On/Off/Floating

Product Description

The Belimo Z3050Q-H+CQBUP-3 is a compact 3-way control valve designed for effective flow control in HVAC systems. It operates efficiently with a 0.5 inch valve size and a flow rate of 1 Cv. This valve features a non-spring return actuator, suitable for both on/off and floating control in 110 to 240V installations.

• Optimized for chilled or hot water applications
• Convenient internal thread end fittings for easy installation
• Robust chrome-plated brass trim enhances durability and longevity

Product Highlights

This control valve provides reliable performance with a 90 degree angle of rotation. It is engineered to handle both chilled and hot water up to 60% glycol. The electrical connections are securely designed with cable wiring, ensuring uninterrupted operations.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z3050Q-H+CQBUP-3

Technical Specifications

• Valve Size: 0.5 inch
• Cv: 2.7
• Angle of Rotation: 90
• Control Type: Floating/3-point
• Voltage: AC100...240V
• Power Consumption (Running): 1 W
• Power Consumption (Holding): 0.7 W
• Running Time (Motor): 75s / 90B0
