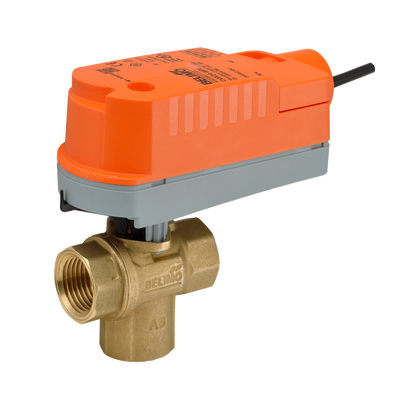

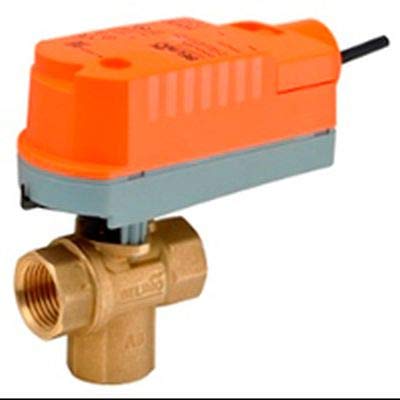

Belimo Z3050Q-E+CQKB24-RR ZoneTight | 0.5 | 3 Way | 2.7 Cv | w/ Electronic FS | 24V | On/Off

Product Description

The Belimo Z3050Q-E+CQKB24-RR is a ZoneTight valve designed for HVAC systems. It operates at a voltage of twenty-four volts and features a three-way design. This valve has a flow coefficient of two point seven and is equipped with electronic fail-safe functionality for enhanced reliability. It is suitable for applications involving either chilled or hot water, with up to sixty percent glycol.

• Electrical fail-safe actuator for reliable operation
• Ideal for both chilled and hot water systems
• Compact size with a flow capacity of two point seven

Product Highlights

This valve effectively regulates flow in mechanical systems, ensuring efficient temperature control.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z3050Q-E+CQKB24-RR

Technical Specifications

• Angle of Rotation: 90 degrees
• Cv: 2.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches
• Actuator Type: Electrical fail-safe
• Control Type: On/Off
• Degree of Protection: IP40 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 60 seconds
• Running Time (Motor): 75 seconds
• Voltage AC/DC: AC/DC 24 V
