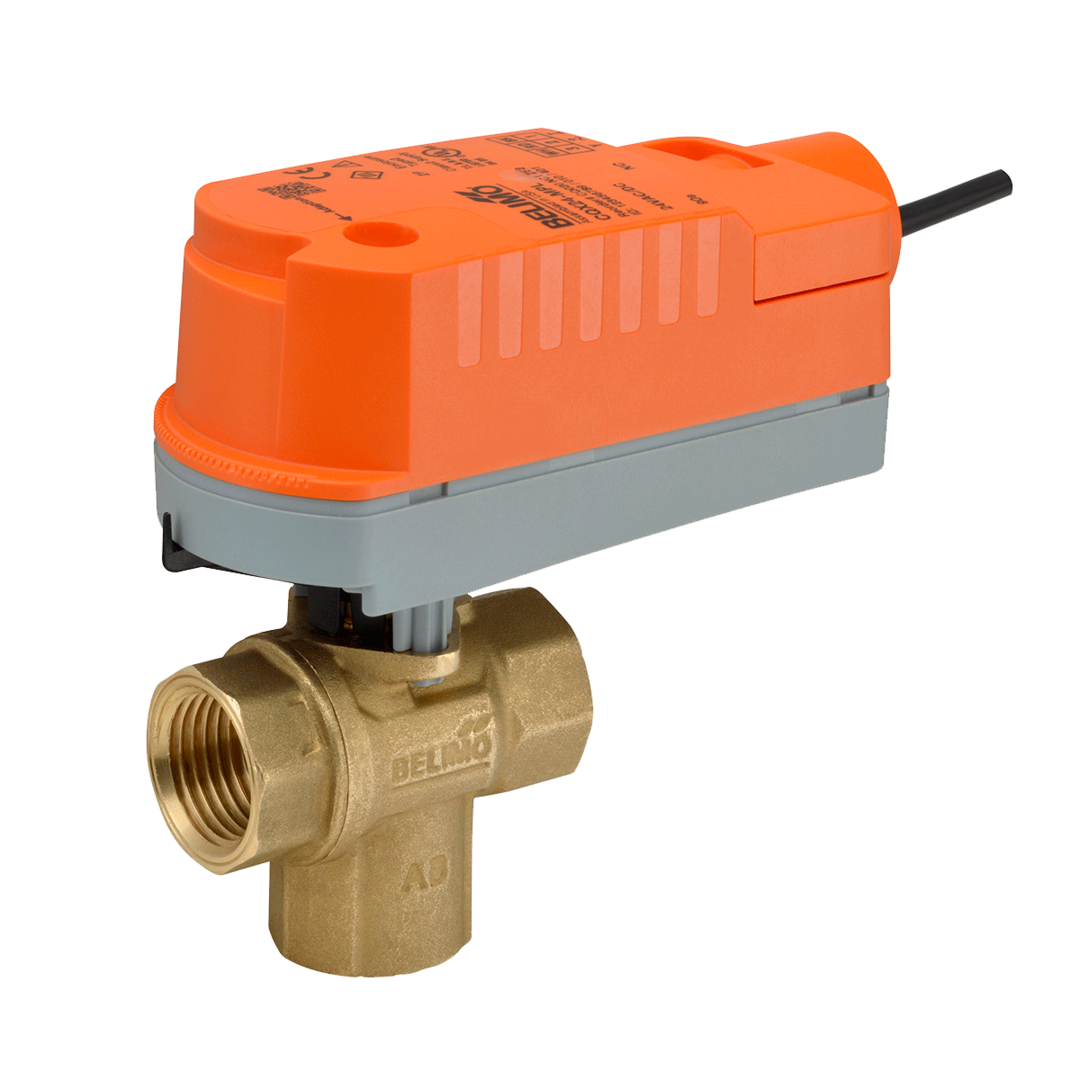

Belimo Z3050Q-E+CQKB24-LL Zonetight Valve Assembly 24V 1/2 in.

Product Description

The Belimo Z3050Q-E+CQKB24-LL is a zonetight valve assembly designed for efficient control in HVAC systems. This 3-way valve allows for precise flow regulation in chilled or hot water applications, up to sixty percent glycol.

• Equipped with a direct coupled actuator for reliable on/off control.
• Features a forged brass body with chrome plated brass components.
• Capable of close-off pressure up to seventy-five psi.

Product Highlights

This valve is suitable for use in large commercial buildings where higher close-off and adjustable flow are required.

Product Information

Standard Information

• Manufacturer: Belimo
• Part Number: Z3050Q-E+CQKB24-LL

Technical Specifications

• Size: 1/2 inch
• Flow Characteristic: Linear
• Power Consumption: 2.5 W running, 0.5 W holding
• Angle of Rotation: 90 degrees
• Electrical Connection: 3 ft. 18 GA plenum cable
• Operating Conditions: 35 F to 104 F
• Degree of Protection: IP40, NEMA 2
