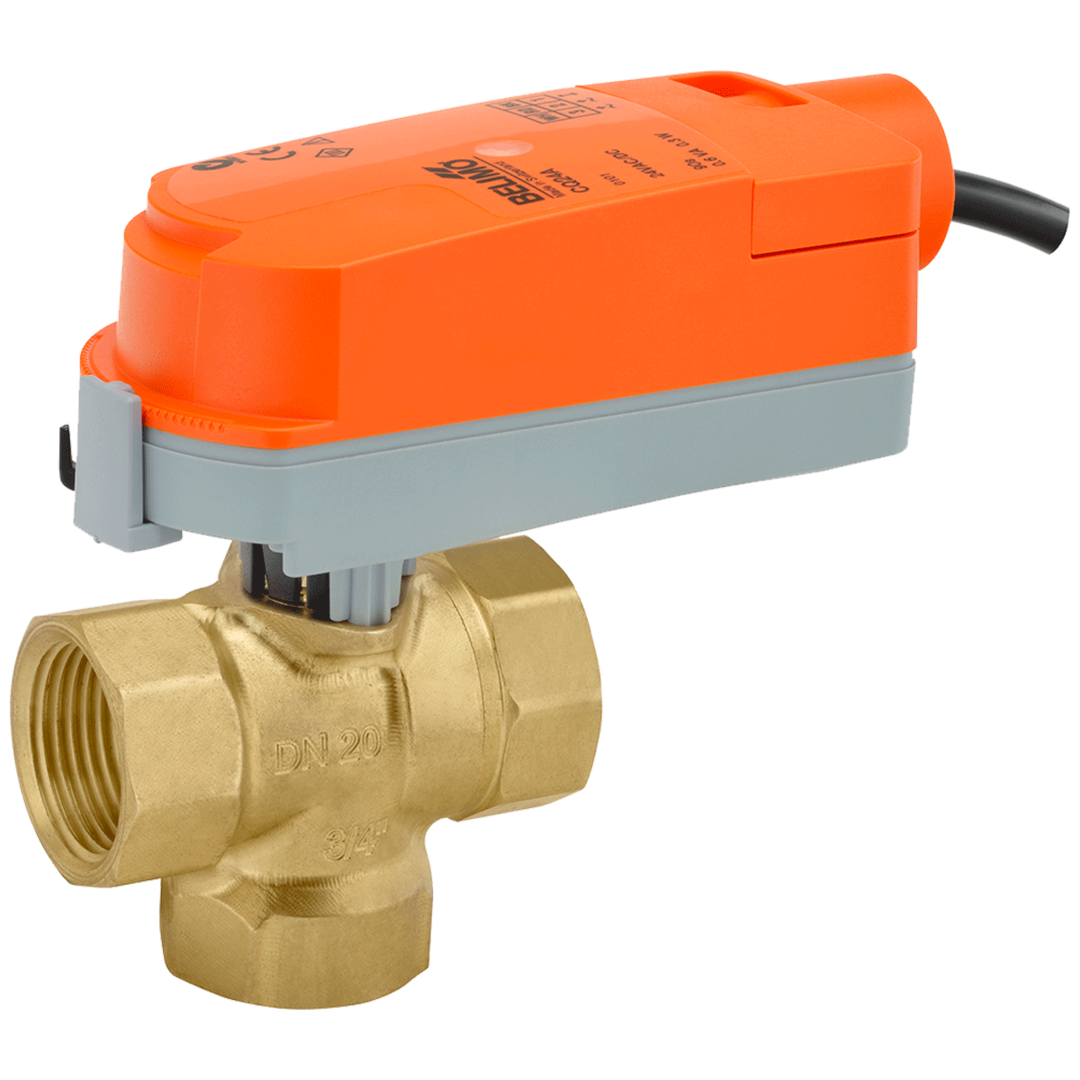

Belimo Z3050Q-E+CQBUP-3 ZoneTight 0.5 3 Way 2.7 Cv w/ Non-Spg 110 to 240V On/Off/Floating

Product Description

The Belimo Z3050Q-E+CQBUP-3 is a zone valve designed for commercial applications. It is a three-way valve that operates with a nominal size of half an inch and a flow coefficient of 2.7 Cv. This valve is compatible with chilled or hot water systems containing up to sixty percent glycol.

• Nominal size: 0.5 inches
• Voltage: 110 to 240V
• Control Type: On/Off/Floating

Product Highlights

This valve is ideal for use in various heating, ventilation, and air conditioning systems including fan coil units and VAV reheat coils. It eliminates the need for additional tools during installation, fitting easily in tight spaces.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z3050Q-E+CQBUP-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Cv: 2.7
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 seconds
• Voltage AC/DC: AC 100 to 240 V
