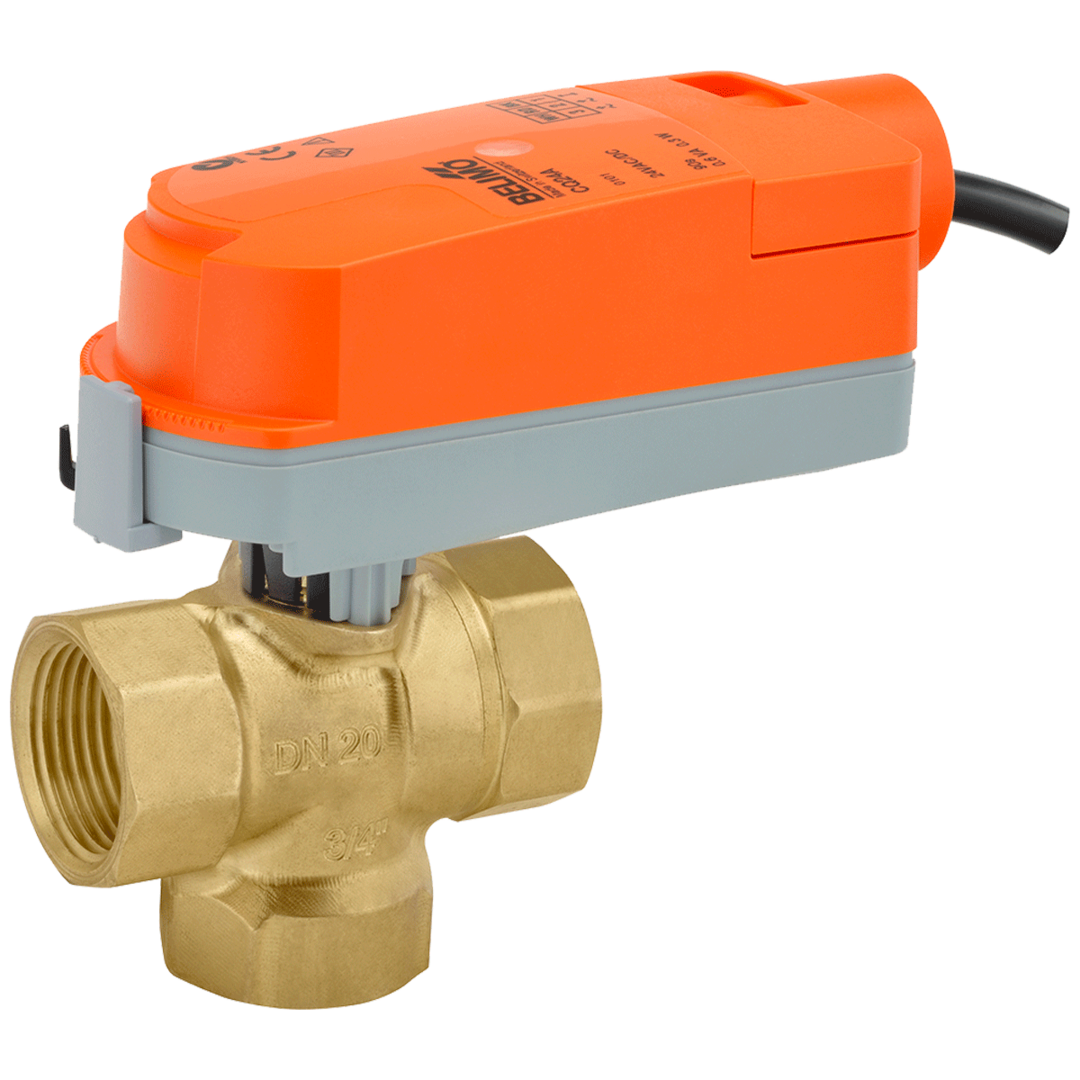

Belimo Z3050Q-E+CQB24-3 Zonetight Valve Assembly 3 Way 1/2 in.

Product Description

The Belimo Z3050Q-E+CQB24-3 is a 3-way zonetight valve assembly designed to provide effective flow control in HVAC systems. This valve is suited for large commercial buildings where precise temperature management and adaptability in flow are needed.

• Quick connect valve design
• Forged brass body and chrome-plated brass ball and stem
• Direct coupled actuator with on/off floating control

Product Highlights

Compact and durable design ideal for installation in tight spaces. Works with chilled and hot water, up to sixty percent glycol.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z3050Q-E+CQB24-3

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.3 W Running, 0.2 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Linear
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
