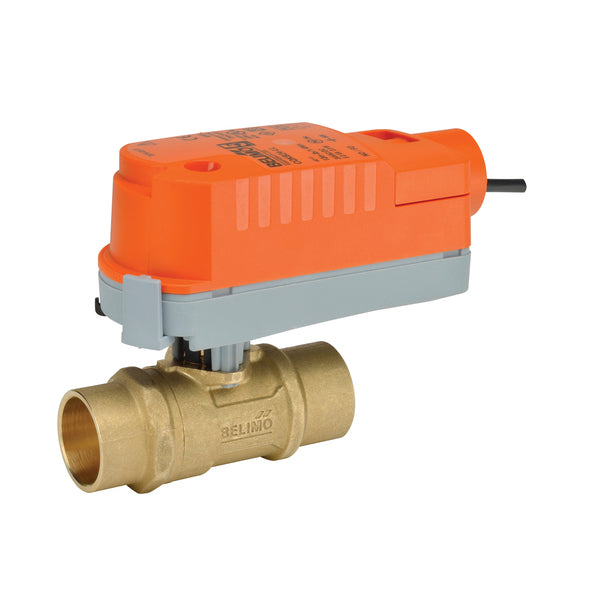

Belimo Z2075QS-K+CQXUP-3 ZoneTight (QCV), 3/4, 2-way Configurable Valve Actuator, Non fail-safe, AC 100-240 V, On/Off, Floating point

Product Description

The Belimo Z2075QS-K+CQXUP-3 is a zone tight configurable valve actuator designed for optimal control in heating and cooling applications. It operates on an AC voltage range of one hundred to two hundred forty volts. This actuator allows for on/off and floating point control, making it suitable for various HVAC systems.

• Non fail-safe design
• Capable of handling chilled or hot water up to sixty percent glycol
• Suitable for 2-way applications

Product Highlights

This product is ideal for controlling fluid flow in HVAC systems with its straightforward installation and robust design.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2075QS-K+CQXUP-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 9.8
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.75 [20]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 100 to 240 V
