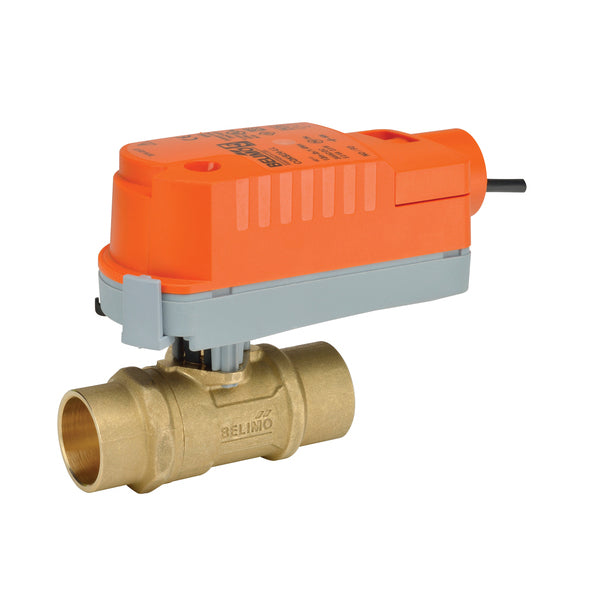

Belimo Z2075QS-K+CQX24-3 | ZoneTight (QCV), 3/4, 2-way | ConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

Product Description

The Belimo Z2075QS-K+CQX24-3 is a zone valve actuator designed for efficient control of chilled or hot water systems. It operates on AC/DC 24 V power and offers a configurable setup for on/off or floating point control. This actuator is suitable for various HVAC applications requiring reliable performance.

• Non fail-safe actuator with a durable design.
• Operates on AC/DC 24 V.
• Designed for 2-way flow control in a 3/4 inch size.

Product Highlights

This actuator provides an effective solution for controlling fluid flow in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075QS-K+CQX24-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 9.8
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.75 inches [20]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 0.3 W
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
