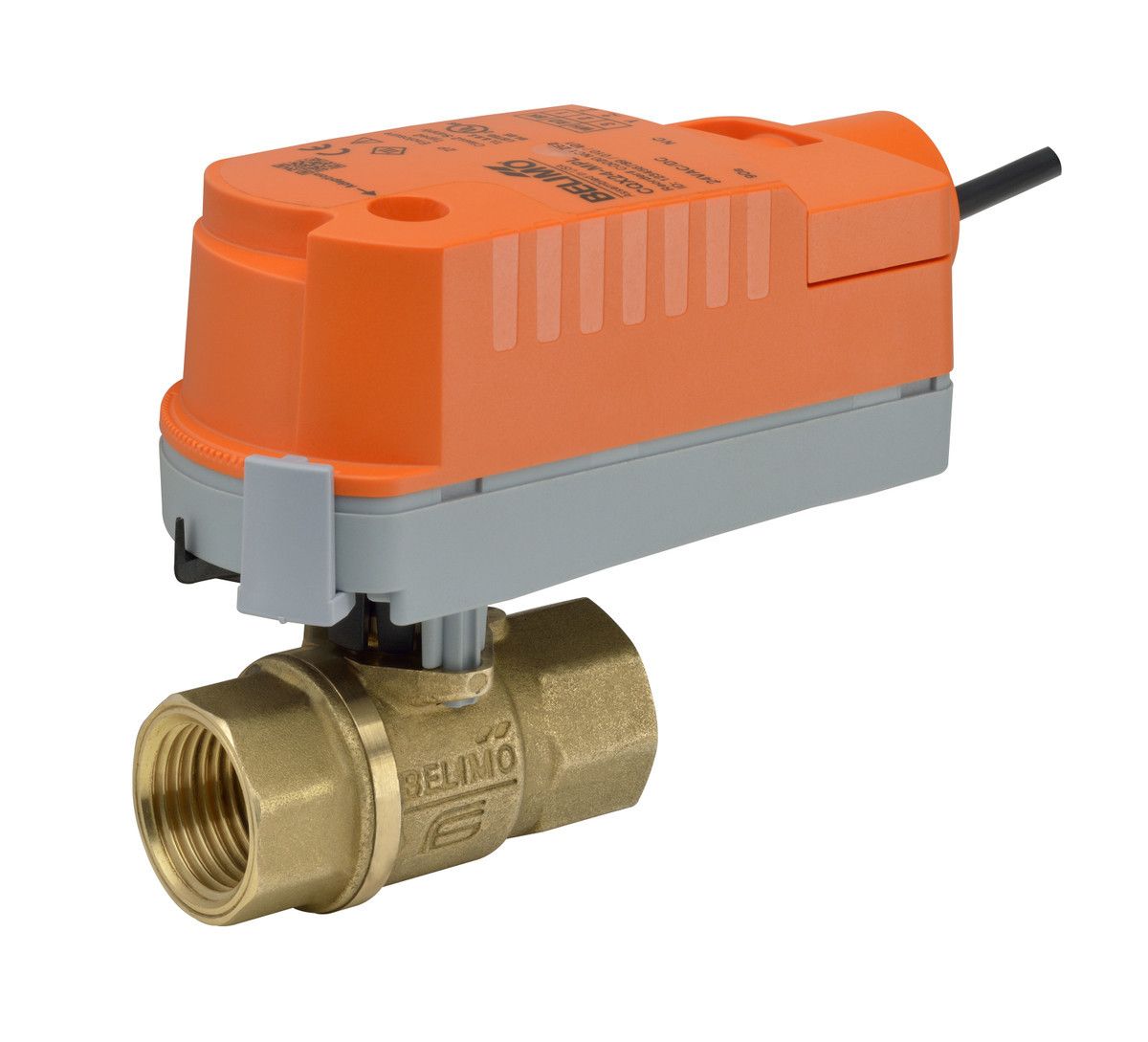

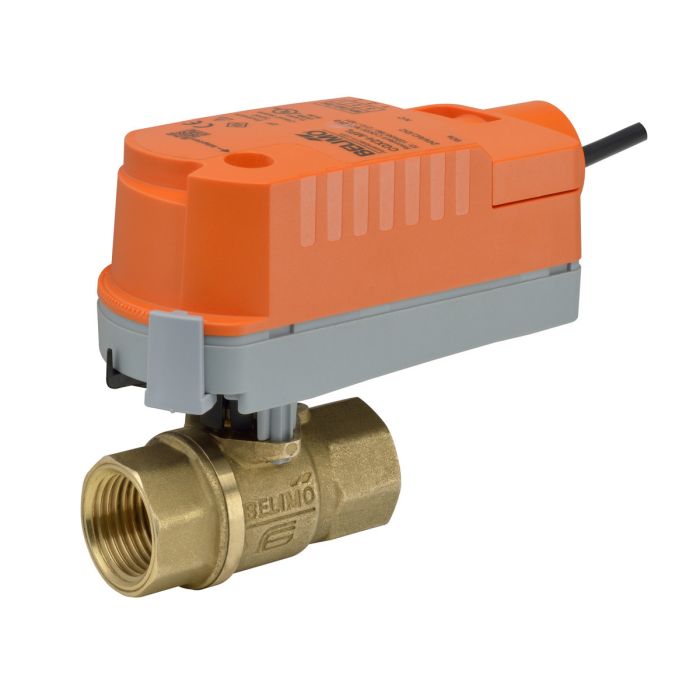

Belimo Z2075QS-K+CQKB24-SR-RL Zonetight Valve Assembly, 2 Way, 3/4 in.

Product Description

The BELIMO Z2075QS-K+CQKB24-SR-RL is a quick connect valve assembly with a forged brass body and chrome-plated brass ball and stem. It features a direct-coupled actuator, electronic fail-safe, and is designed for 2 to 10 VDC or 4 to 20 mA control signals. Suitable for use with chilled or hot water with up to 60% glycol.

• Suited For Large Commercial Buildings Where Higher Close-Off And The Ability To Change Flow Is Desired
• Valve Fits In Space Restricted Areas And Can Be Assembles Without The Use Of Tools
• Common Applications Include Unit Ventilators, Fan Coil Units, VAV Reheat Coils, Fin Tube Casing, Radiant Panels And Duct Coils

Product Highlights

This valve assembly is ideal for commercial buildings, offering easy assembly and compatibility with various HVAC applications.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: Z2075QS-K+CQKB24-SR-RL

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Angle of Rotation: 90
• Cv: 9.8
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.75" [20]
• Actuator Type: Electric
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 2
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <60 s
• Running Time (Motor): 75 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Type: Assembly
• Connection: Sweat
• Fail-Safe: Spring Return
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Brass
• Size: 3/4 in
• Control Signal: Analog
• Enclosure nema rating: NEMA 2
• Fail safe: Electronic Fail Safe
• Body Pressure Rating: 360 psi
• Flow characteristic {Tools}: Equal percentage
• Protection category: IP40
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Valve size: 0.75" [20]
• Brand: Belimo
• Control type: Modulating
• Voltage: AC/DC 24 V
• Product category: Control Valves & Actuators
• Product subcategory: Non-Spring Return Valve Assemblies
• Supplier part number: Z2075QS-K+CQKB24-SR-RL
