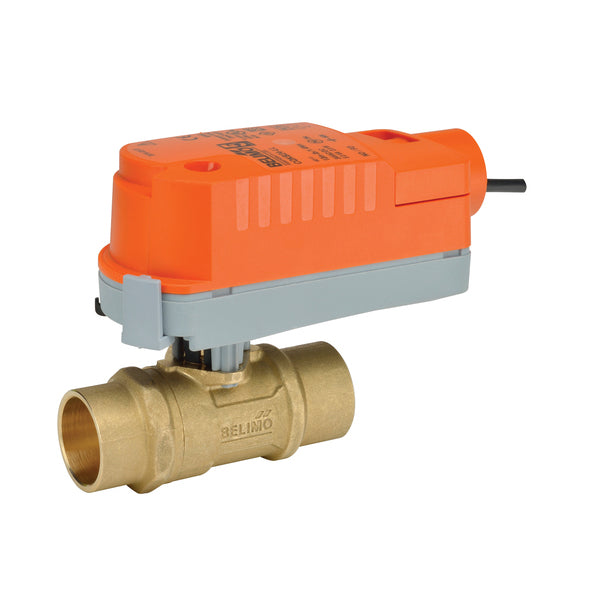

Belimo Z2075QS-K+CQBUP-3 ZoneTight 0.75 2 Way 9.8 Cv Sweat w/ Non-Spring 110 to 240V On/Off/Floating

Product Description

The Belimo Z2075QS-K+CQBUP-3 is a 0.75 inch two-way valve designed for flow control in HVAC systems. This model is optimized for both chilled and hot water applications, suitable for up to 60% glycol mixtures. The valve features a Cv of 9.8, making it efficient for various flow rates.

• Valve size: 0.75 inch
• Non fail-safe actuator type
• Operates on 110 to 240V

Product Highlights

This valve is ideal for controlling temperature in various HVAC applications. It supports on/off and floating control types, ensuring versatility in operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075QS-K+CQBUP-3

Technical Specifications

• Cv: 9.8
• Valve Size: 0.75 inches [20]
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Angle of Rotation: 90 degrees
• Control Type: Floating/3-point
• Voltage: AC 100...240V
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 seconds
• Degree of Protection: IP40 NEMA 2
