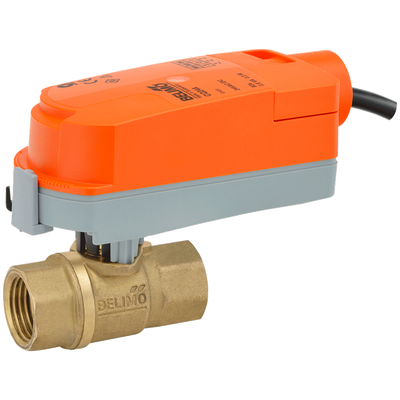

Belimo Z2075QS-K+CQB24-3 | ZoneTight | 0.75 | 2 Way | 9.8 Cv | Sweat | w/ Non-Spring | 24V | On/Off/Floating

Product Description

Belimo Z2075QS-K+CQB24-3 is a zone valve designed for HVAC applications. This valve provides precise control for chilled or hot water systems with up to sixty percent glycol fluid. It features a two-way operation and a Cv of 9.8, making it ideal for managing flow efficiently.

• Voltage: AC/DC 24V
• Actuator type: Non-fail-safe
• Angle of rotation: Ninety degrees

Product Highlights

This valve ensures reliable performance in heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075QS-K+CQB24-3

Technical Specifications

• Valve Size: 0.75 inches
• Pattern: 2-way
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Sweat
• Cv: 9.8
• Electrical Connection: Cable
• Control Type: Floating/3-point
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 0.3 W
• Running Time (Motor): 75 seconds for ninety degrees
• Degree of Protection: IP40 NEMA 2
