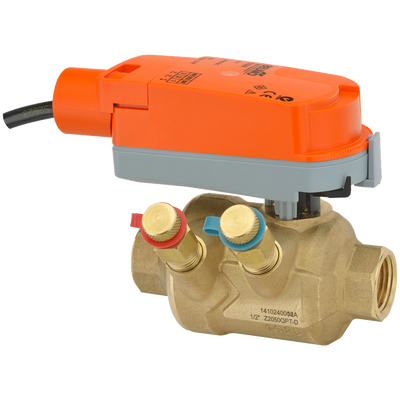

Belimo Z2075QPT-G+CQXUP-3 ZoneTight (PIQCV), 3/4, 2-way, 9 Configurable Valve Actuator, Non fail-safe, AC 100-240 V, On/Off, Floating point

Product Description

The Belimo Z2075QPT-G+CQXUP-3 is a ZoneTight (PIQCV) valve actuator. This actuator is designed to control the flow of chilled or hot water in two-way configurations. It operates on alternating current between one hundred and two hundred forty volts and supports on/off or floating point control.

• Configurable for specific applications
• Suitable for chilled or hot water up to sixty percent glycol
• Pressure independent design

Product Highlights

This valve actuator enhances heating and cooling systems through precise flow control and durable construction.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075QPT-G+CQXUP-3

Technical Specifications

• Valve specifications:
• Angle of Rotation: 90
• Flow: 9
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: YES
• Trim: Stainless steel
• Valve Size: 0.75 [20]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage AC/DC: AC 100...240 V
