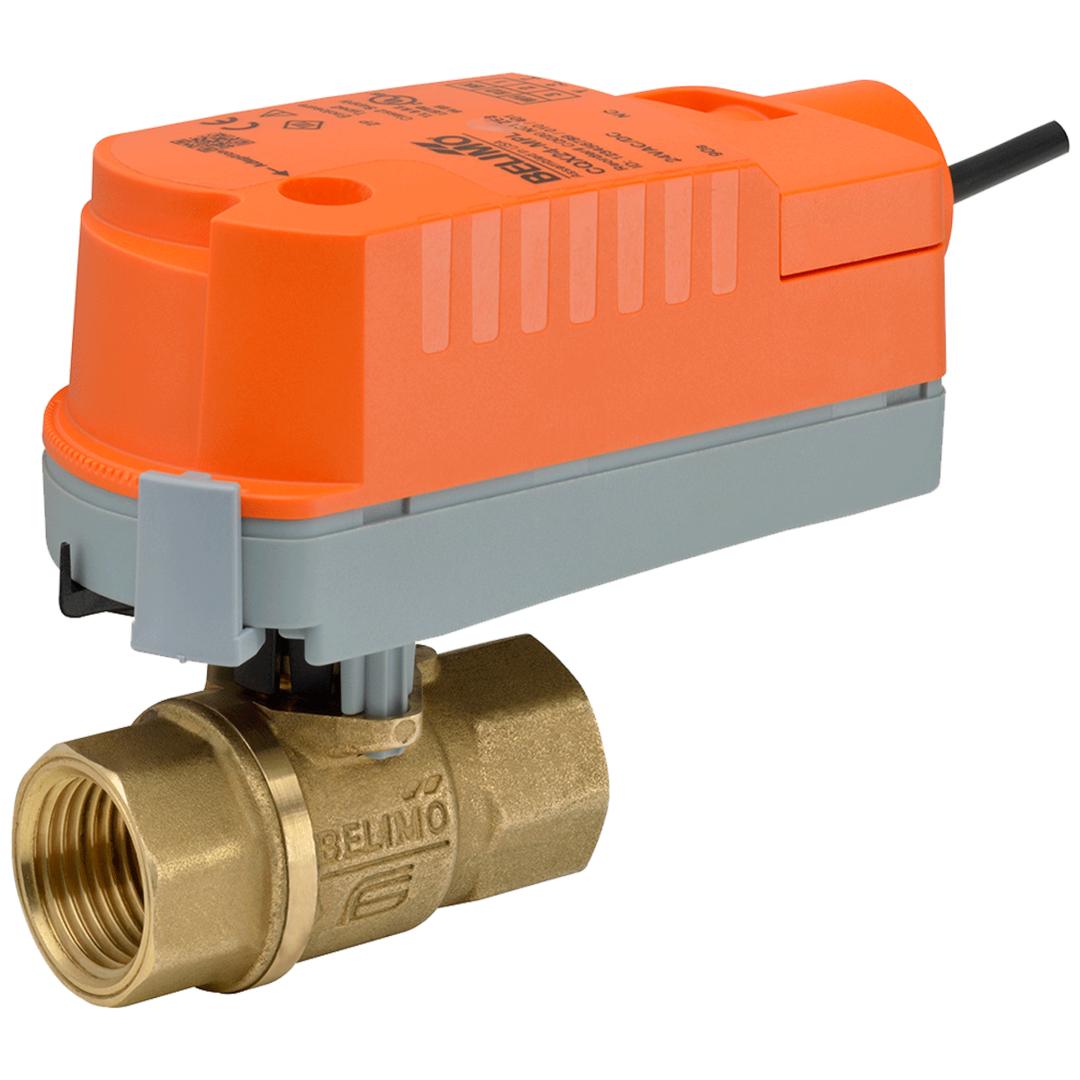

Belimo Z2075QPF-K+CQKB24-RR ZoneTight (QCV) Press Fit 2-Way Valve Actuator Electronic Fail-Safe AC/DC24V 3/4 inches Cv9.8

Product Description

The BELIMO Z2075QPF-K+CQKB24-RR is a ZoneTight™ (QCV) valve actuator designed for HVAC applications. This 3/4" 2-way valve features a press-fit end fitting and a Cv of 9.8, suitable for chilled or hot water systems with up to 60% glycol. It operates with an electronic fail-safe mechanism, ensuring a normally closed, fail-safe position. The actuator uses AC/DC 24V power and provides on/off control, making it ideal for precise flow regulation in zone control systems.

• Electronic fail-safe operation with a normally closed, fail-safe position.
• Designed for 3/4" 2-way applications with a Cv of 9.8 and press-fit end fitting.
• Compatible with AC/DC 24V power, offering on/off control for HVAC systems.

Product Highlights

ZoneTight (QCV) valve actuator with electronic fail-safe, AC/DC 24V, and on/off control for precise flow management.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: Z2075QPF-K+CQKB24-RR

Technical Specifications

• Angle of Rotation: 90
• Cv: 9.8
• End Fitting: Press fit
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.75" [20]
• Actuator Type: Electrical fail-safe
• Control Type: On/Off
• Enclosure Rating: IP40 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Fail-safe Running Time: <60 s
• Motor Running Time: 75 s / 90B0
• Input Voltage: AC/DC 24 V
• Life Expectancy: 100,000+ cycles
• Materials of Construction: Plastic, aluminum, steel
• Operating Temperature: -22° to 122°F (-30° to 50°C)
• Operating Humidity: 5-95% non-condensing
• Approvals: cULus, UL 60730-1A/-2, -14, CAN/CSA E60730-1:02, CE 2004/108/EC, 2006/95/EC
• Auxiliary Switch: Add-on, @SPDT, 3A @ 250V
