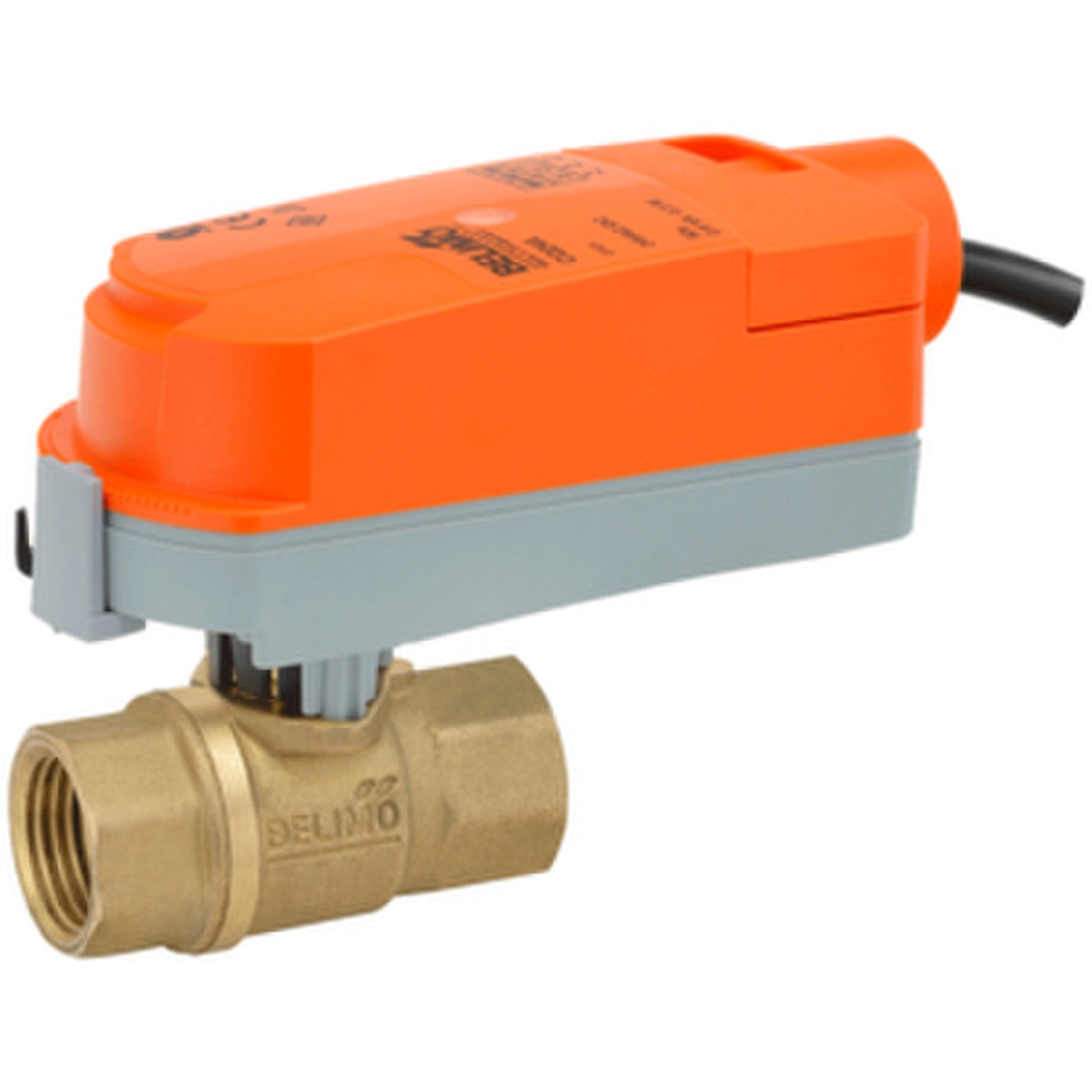

Belimo Z2075QPF-K 2-way ZoneTight Valve 24 VAC/DC 3/4 inch

Product Description

The BELIMO Z2075QPF-K is a 2-Way ZoneTight Valve with a non-spring return actuator, designed for precise HVAC control. Operating on 24 VAC/DC, this 3/4 inch valve features a Cv of 9.8 and a press-fit connection, ensuring efficient flow regulation. It utilizes a 2-10VDC (4-20mA) proportional control signal for accurate positioning and has a 75-second run time, making it suitable for various zone control applications.

• 2-Way ZoneTight Valve with 3/4 inch size and Cv 9.8 for effective flow control.
• Non-Spring Return Actuator operates on 24 VAC/DC with a 75-second run time.
• Proportional control via 2-10VDC (4-20mA) signal, featuring NEMA 2 (IP40) enclosure.

Product Highlights

Efficient 2-way zone valve with proportional control for HVAC systems.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: Z2075QPF-K

Technical Specifications

• Valve Type: 2-Way ZoneTight Valve
• Size: 3/4 inch
• Cv: 9.8
• Connection: Press Fit
• Actuator Type: Non-Spring Return Valve Actuator
• Input Voltage: 24 VAC/DC
• Operation: Normally Closed
• Control Signal: 2-10VDC (4-20mA) Proportional
• Run Time: 75 Second
• Enclosure Rating: NEMA 2 (IP40)
