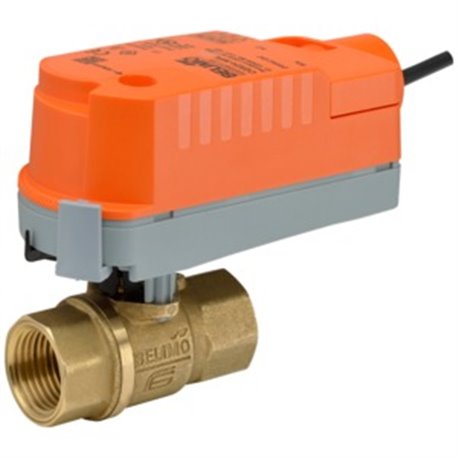

Belimo Z2075Q-K+CQKB24-S-RR Zonetight Valve Assembly 2 Way 3/4 in.

Product Description

The Belimo Z2075Q-K+CQKB24-S-RR is a zonetight valve assembly designed for HVAC systems. This valve features a two-way configuration and fits pipes with a three-quarter inch diameter. It is suitable for applications requiring precise flow control and reliable performance in various commercial settings.

• Designed for large commercial buildings.
• Fits in confined spaces and requires no tools for assembly.
• Available for use with chilled or hot water.

Product Highlights

This valve is ideal for applications such as unit ventilators, fan coil units, and VAV reheat coils. It operates efficiently in both chilled and hot water conditions that include up to sixty percent glycol.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075Q-K+CQKB24-S-RR

Technical Specifications

• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 75 psi
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Operating Conditions: 35 F to 104 F (1.7 C to 40 C)
• Auxiliary Switch: 1 x SPST
• Electrical Connection: 3 ft. 18 GA Plenum Cable with 1/2 in. Conduit Connector
• Trim: Chrome plated brass
• Degree of Protection: IP40 NEMA 2
