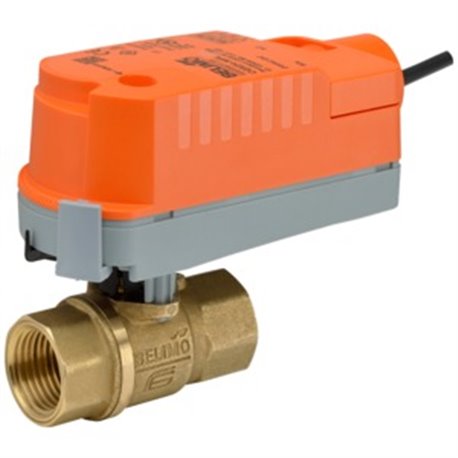

Belimo Z2075Q-K+CQKB24-S-LL Zonetight Valve Assembly 2 Way 3/4 in.

Product Description

The Belimo Z2075Q-K+CQKB24-S-LL is a zonetight valve assembly designed for efficient flow management in HVAC systems. This two-way valve features a size of three-fourths of an inch and is suitable for use with chilled and hot water up to sixty percent glycol. It is ideal for large commercial buildings where higher close-off capability and adjustable flow are necessary.

• Quick connect valve.
• Easy assembly without tools.
• Suitable for space-restricted areas.

Product Highlights

This valve is equipped with a direct coupled actuator and provides reliable on/off control with electronic fail-safe functionality.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075Q-K+CQKB24-S-LL

Technical Specifications

• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 75 psi
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Angle of Rotation: 90 degrees
• Degree of Protection: IP40 NEMA 2
• Controllable Flow Range: 75 B0
