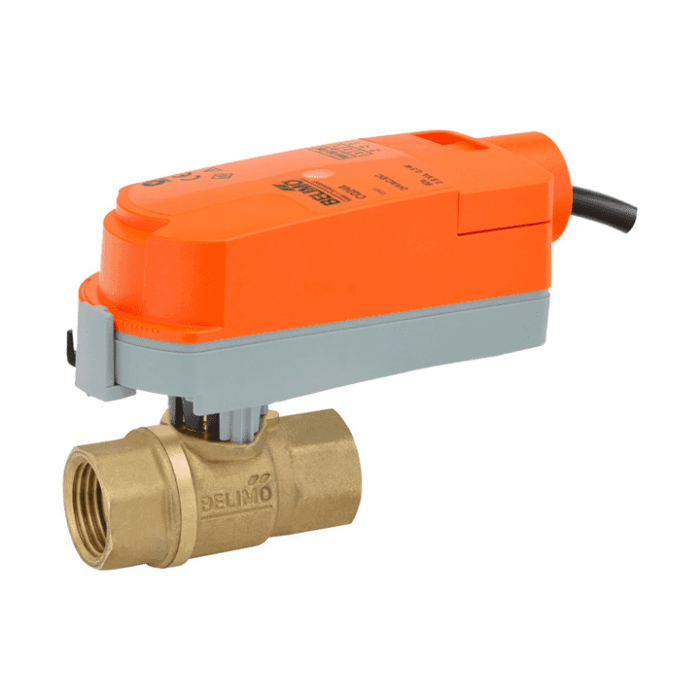

Belimo Z2075Q-K+CQBUP-3 Zonetight Valve Assembly 2 Way 3/4 in.

Product Description

The Belimo Z2075Q-K+CQBUP-3 is a zonetight valve assembly designed for reliable control in HVAC applications. This product features a two-way valve with a size of three-fourths of an inch, making it suitable for various commercial settings.

• Quick connect design for easy installation
• Operates at 100 to 240 VAC for versatile use
• Non-spring return actuator for efficient operation

Product Highlights

The zonetight valve assembly is ideal for large commercial buildings where precise flow control is critical. This model is compact and designed to fit in space-restricted areas.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075Q-K+CQBUP-3

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled or hot water, up to 60% glycol
• Power Consumption: 1 W running, 0.7 W holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 104 F (1.7 C to 40 C)
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit connector
