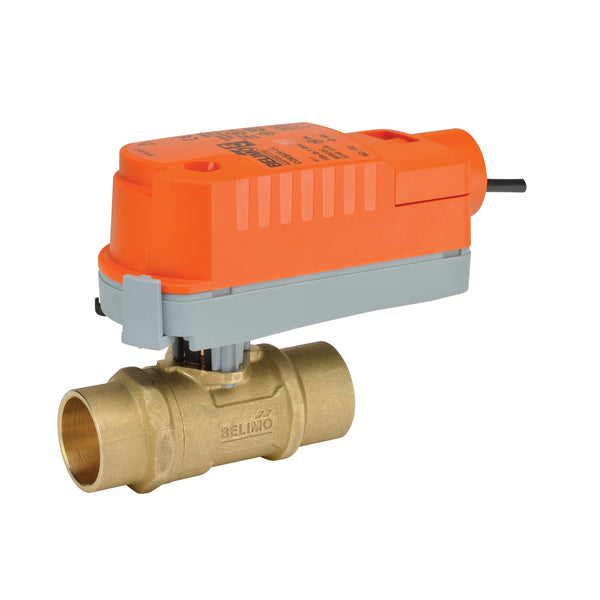

Belimo Z2050QS-J+CQXUP-3 ZoneTight (QCV), 1/2, 2-way Configurable Valve Actuator, Non fail-safe, AC 100-240 V, On/Off, Floating point

Product Description

Belimo offers the Z2050QS-J+CQXUP-3, a zone tight actuator designed for effective flow control. This product operates on AC power from one hundred to two hundred forty volts and supports on/off and floating point control. The actuator is suitable for two-way valves.

• Compatible with chilled or hot water systems
• Non fail-safe actuator type
• IP40 NEMA rated for protection against dust and moisture

Product Highlights

The actuator features a chrome plated brass trim, ensuring durability and reliability in various applications. The valve is intended for use with fluid mixtures containing up to sixty percent glycol.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QS-J+CQXUP-3

Technical Specifications

• Valve Size: 0.5 inches (15 mm)
• Cv: 5.9
• Control Type: Floating/3-point
• Angle of Rotation: 90 degrees
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 seconds at 90 degrees
• End Fitting: Sweat
