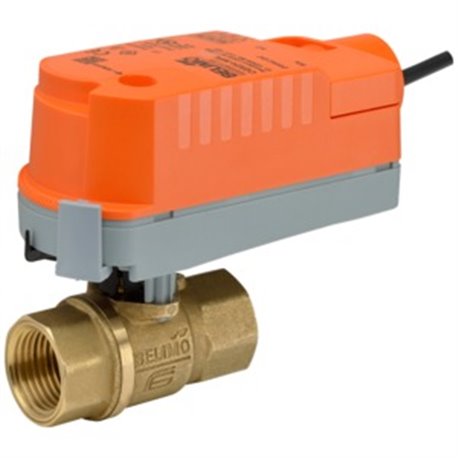

Belimo Z2050QS-J+CQKB24-LL Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo Z2050QS-J+CQKB24-LL is a zonetight valve assembly. This 2-way valve is designed for use in systems where changing flow and higher close-off capabilities are required, suitable for commercial buildings.

• Direct coupled actuator with 24 VAC power
• Chrome plated brass body for durability
• Quick connect valve for easy installation

Product Highlights

This valve assembly features a forged brass body and chrome plated brass ball and stem. It can operate under chilled or hot water conditions, capable of handling up to sixty percent glycol addition.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2050QS-J+CQKB24-LL

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Degree of Protection: IP40 NEMA 2
• Trim: Chrome plated brass
• Valve Size: 0.5 [15]
