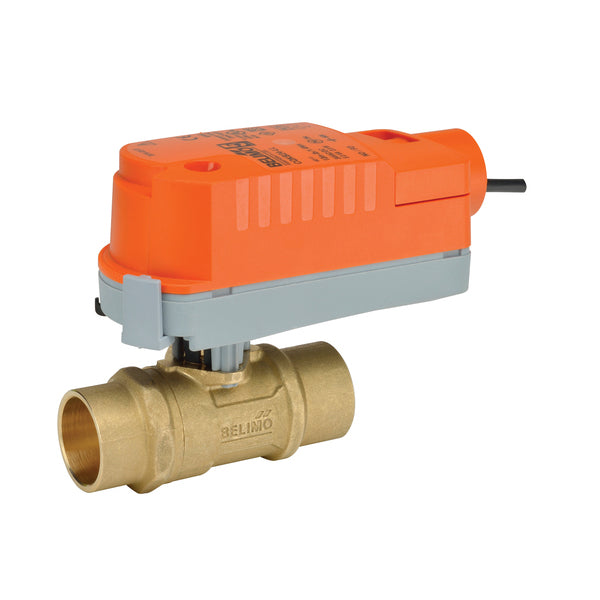

Belimo Z2050QS-J+CQBUP-3 ZoneTight 0.5 2 Way 5.9 Cv Sweat w/ Non-Spring 110 to 240V On/Off/Floating

Product Description

The Belimo Z2050QS-J+CQBUP-3 is a 0.5 inch zone tight valve designed for effective flow control in HVAC systems. This valve operates as a two-way device with a Cv rating of 5.9, perfect for applications involving chilled or hot water up to sixty percent glycol. It ensures precise temperature management for climate control.

• Effective for chilled and hot water systems.
• Operating voltage range of one hundred to two hundred forty volts.
• Non-spring actuator type for reliable performance.

Product Highlights

This valve is suitable for HVAC applications where reliable flow control is essential. It integrates seamlessly in system setups requiring accurate temperature modulation.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QS-J+CQBUP-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 5.9
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inch (15 mm)
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 100...240 V
