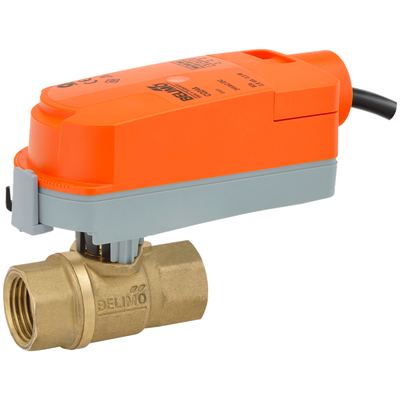

Belimo Z2050QS-J+CQB24-3 ZoneTight | 0.5 | 2 Way | 5.9 Cv | Sweat | w/ Non-Spring | 24V | On/Off/Floating

Product Description

The Belimo Z2050QS-J+CQB24-3 ZoneTight valve is a mechanical component designed for precise flow control. This valve features a unique two-way design with a flow coefficient of 5.9. It is suitable for use with chilled or hot water, including mixes up to sixty percent glycol. Ideal for HVAC systems, this valve operates on a twenty-four volt power supply and can be configured for on/off or floating applications.

• Effective flow control with low energy consumption
• Compatible with various fluid types including chilled water
• Compact size facilitates installation in tight spaces

Product Highlights

This valve is non-fail-safe and designed for reliable operation in HVAC applications.

Product Information

Standard Information

• Manufacturer: Belimo
• Valve Size: 0.5 inches

Technical Specifications

• Cv: 5.9
• Angle of Rotation: 90 degrees
• End Fitting: Sweat
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage: AC/DC 24V
• Power Consumption (Holding): 0.2 Watts
• Power Consumption (Running): 0.3 Watts
• Running Time (Motor): 75 seconds for 90 degrees
