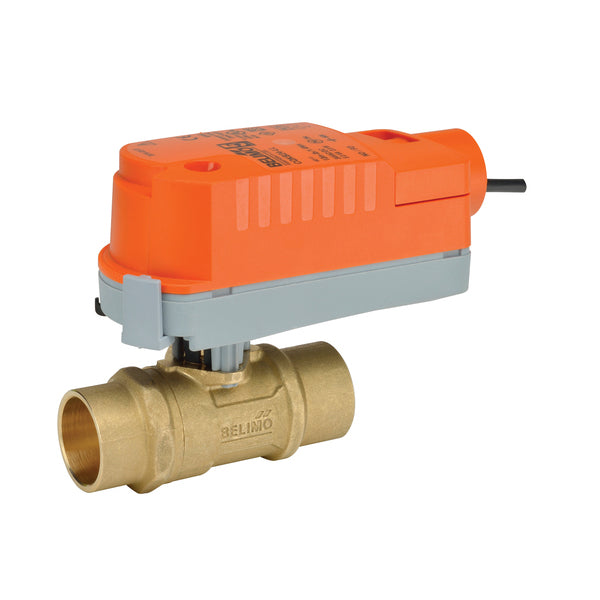

Belimo Z2050QS-F+CQXUP-3 ZoneTight (QCV) 1/2 2-way Configurable Valve Actuator

Product Description

The Belimo Z2050QS-F+CQXUP-3 is a zone tight configurable valve actuator designed for effective flow control in HVAC applications. This actuator operates on alternating current ranging from one hundred to two hundred forty volts. It features a two-way pattern and is suitable for use with chilled or hot water containing up to sixty percent glycol.

• Non fail-safe actuator type
• Floating control type with a rotation angle of ninety degrees
• IP40 rated for protection against foreign objects

Product Highlights

This actuator is efficient for managing heating and cooling systems, providing reliable performance for various applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QS-F+CQXUP-3

Technical Specifications

• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage AC/DC: AC 100 to 240 V
• Power Consumption (Running): 1 W
• Power Consumption (Holding): 0.7 W
• Running Time (Motor): 75 seconds
• Cv: 1.2
• Valve Size: 0.5 inches
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Degree of Protection: IP40 NEMA 2
