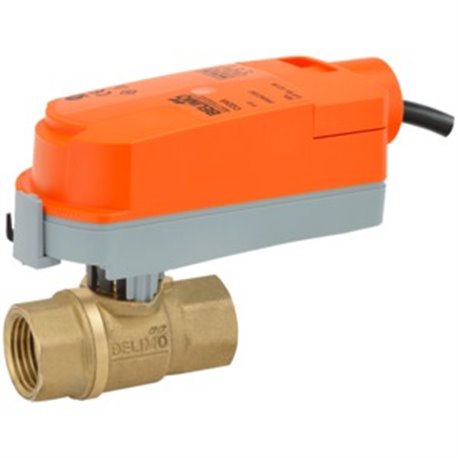

Belimo Z2050QS-F+CQKB24-RR Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo Z2050QS-F+CQKB24-RR is a zonetight valve assembly designed for efficient fluid control in HVAC applications. This 2-way valve operates on chilled or hot water systems, capable of handling up to sixty percent glycol. It supports a variety of configurations and is built for reliability and ease of installation.

• Compact design suitable for space-restricted areas.
• Features quick connect valve with sweat fitting for easy assembly.
• Includes direct coupled actuator for efficient operation.

Product Highlights

This valve is ideal for large commercial buildings where enhanced close-off capabilities are essential.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2050QS-F+CQKB24-RR

Technical Specifications

• Valve Size: 0.5 inches
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 75 psi
• Operating Conditions: 35°F to 104°F
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 inch conduit connector
• Degree of Protection: IP40 NEMA 2
• Actuator Type: Electrical fail-safe
• Control Type: On/Off
