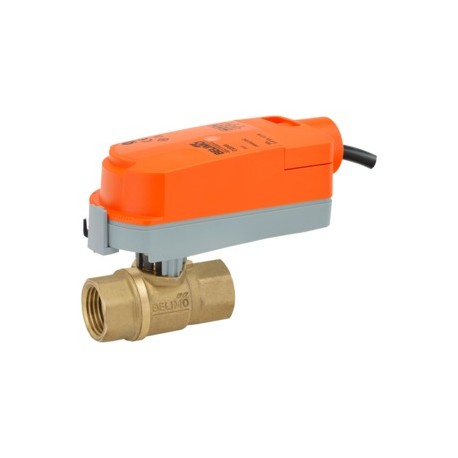

Belimo Z2050QS-F+CQB24-SR-L ZoneTight 0.5 2 Way 1.4 Cv Sweat w/ Non-Spring 24V

Product Description

The Belimo Z2050QS-F+CQB24-SR-L is a ZoneTight valve designed for efficient control of HVAC systems. This model features a two-way operation with a flow coefficient (Cv) of 1.4 and is suitable for use with chilled or hot water systems containing up to sixty percent glycol.

• Valve size: 0.5 inch (15 mm)
• Non-fail-safe actuator with a DC 2 to 10 volt control type
• Running time of 75 seconds for full rotation

Product Highlights

This valve provides precise control for HVAC applications while ensuring reliability and performance in varying conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QS-F+CQB24-SR-L

Technical Specifications

• Valve Size: 0.5 inch [15 mm]
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 1.4
• End Fitting: Sweat
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.3 W
• Power Consumption (Running): 0.3 W
• Running Time (Motor): 75 seconds
• Voltage: AC/DC 24 V
