Belimo Z2050QPT-F+CQXUP-3 | ZoneTight (PIQCV) | 1/2 | 2-way | 4.3 | Configurable Valve Actuator

Product Description

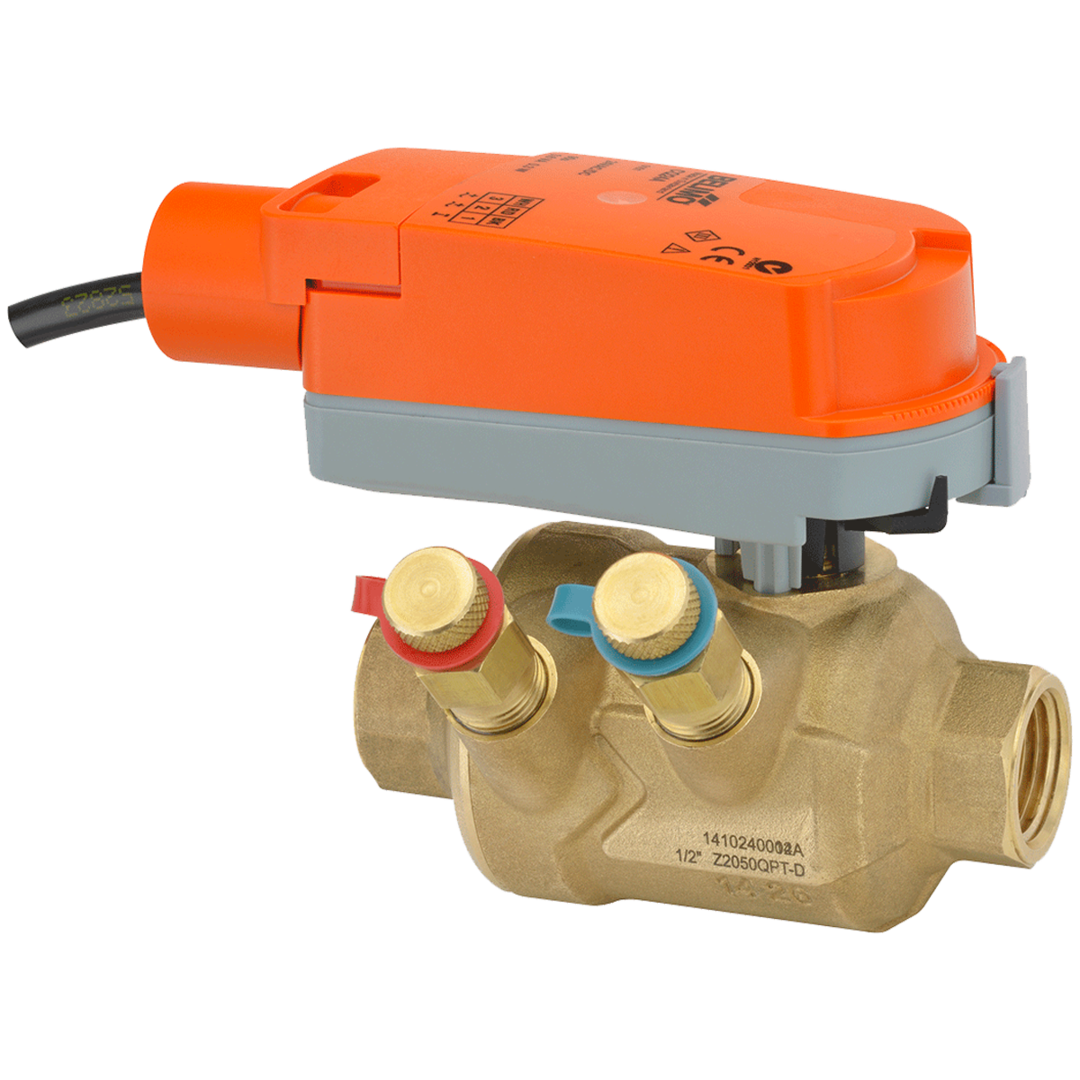

Belimo provides the Z2050QPT-F+CQXUP-3, a ZoneTight valve actuator designed for efficient control of fluid flow. This configurable actuator suits various applications requiring hot or chilled water flow control. It operates on AC100-240 volts and is suitable for on/off or floating control.

• Non-fail-safe actuator type
• Pressure-independent operation
• Mechanical PI-Technology for reliable performance

Product Highlights

This actuator is essential for HVAC systems and can manage chilled or hot water up to sixty percent glycol. It features internal threads for easy installation and a durable stainless-steel trim.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QPT-F+CQXUP-3

Technical Specifications

• Angle of Rotation: 90
• Controllable Flow Range: 75B0
• End Fitting: Internal thread
• Flow: 4.3
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• PI-Technology: Mechanical
• Pressure Independent: YES
• Trim: Stainless steel
• Valve Size: 0.5 [15]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 s / 90B0
• Voltage AC/DC: AC100...240 V
