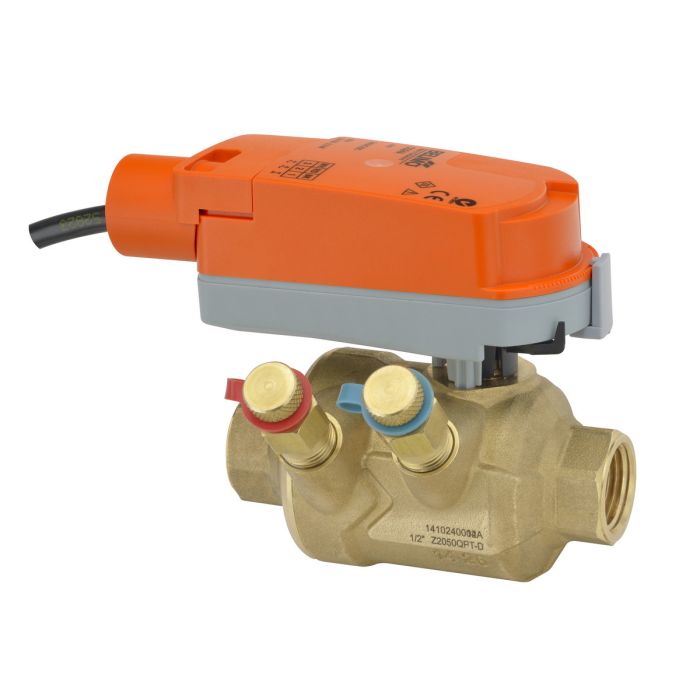

Belimo Z2050QPT-D+CQB24-SR-R Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo Z2050QPT-D+CQB24-SR-R is a two-way valve assembly designed for commercial HVAC systems. This model features a pressure-independent, quick-connect valve with a forged brass body and stainless steel ball and stem. It operates with a direct coupled actuator that uses a modulating control signal.

• Pressure independent with a quick connect design
• Suitable for space-restricted areas
• Compatible with various control signals

Product Highlights

This valve assembly is ideal for applications requiring precise control in large commercial buildings. It accommodates dynamic balancing efficiently.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2050QPT-D+CQB24-SR-R
• Availability: Out of Stock

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled and hot water, up to 60% glycol
• Power Consumption: 0.3 W running, 0.15 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 104 F (1.7 C to 40 C)
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit connector
• Maximum Allowable Operating Conditions: 212 F (100 C)
