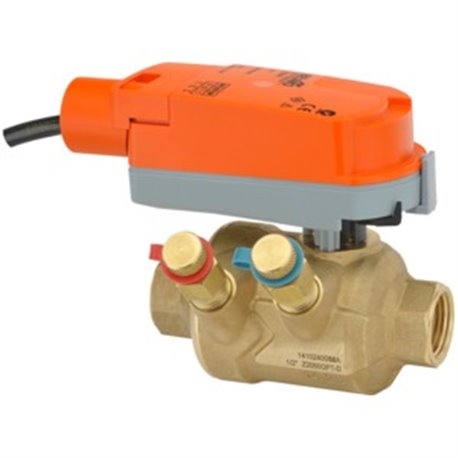

Belimo Z2050QPT-D+CQB24-SR-L Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo Z2050QPT-D+CQB24-SR-L is a Zonetight valve assembly designed for precise control in large commercial HVAC systems. This valve is pressure-independent and suitable for both chilled and hot water applications with up to sixty percent glycol. It operates efficiently with non-spring return actuators, providing modulating control based on 24 VAC or DC signals.

• Pressure Independent and Quick Connect Valve
• Forged Brass Body with Stainless Steel Ball and Stem
• Direct Coupled Actuator with a torque of 12 in-lb

Product Highlights

This valve fits in space-restricted areas and can be assembled without tools. It's ideal for applications needing dynamic balancing and higher close-off pressures.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QPT-D+CQB24-SR-L

Technical Specifications

• Flow: 2.0 GPM
• Pressure Independent: Yes
• Close-Off Pressure: 200 psi
• Operating Conditions: 35 F to 104 F (1.7 C to 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable
• Power Consumption: 0.3 W Running, 0.15 W Holding
• Angle of Rotation: 90 degrees
• Trim: Stainless Steel
