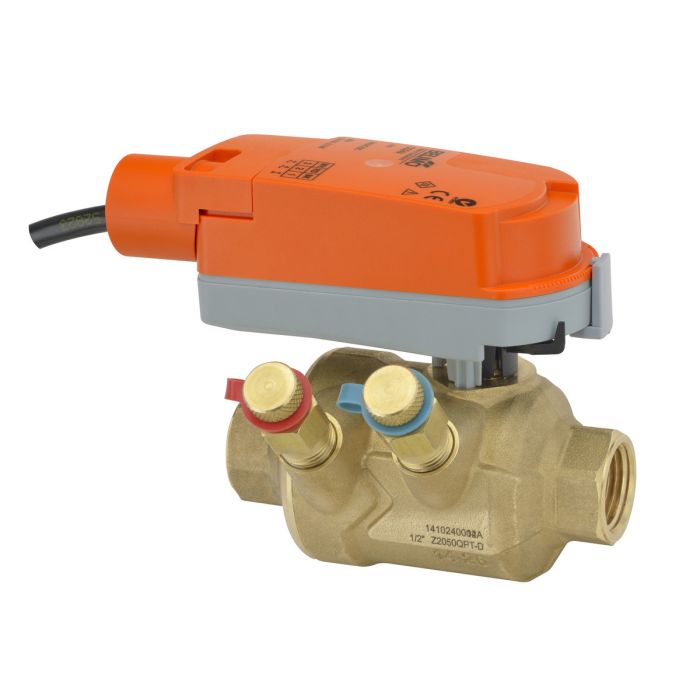

Belimo Z2050QPT-D+CQB24-3 Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

Belimo Z2050QPT-D+CQB24-3 is a two-way zonetight valve assembly designed for demanding applications. This valve efficiently manages flow in large commercial buildings, making it ideal for systems requiring dynamic balancing and high close-off capabilities. The valve's compact design allows it to fit into space-restricted areas and can be assembled without tools, promoting easy installation.

• Pressure Independent Quick Connect Design
• Compatible with Chilled and Hot Water up to Sixty Percent Glycol
• Integrated Direct Coupled Actuator

Product Highlights

This valve is suited for applications including unit ventilators and fan coil units, ensuring precise temperature control and effective heating or cooling in various HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2050QPT-D+CQB24-3

Technical Specifications

• Flow Rate: 2 GPM
• Close-Off Pressure: 200 psi
• Operating Conditions: 35°F to 104°F
• Power Consumption: 0.3 W Running, 0.2 W Holding
• Electrical Connection: 3 ft. 18 GA Plenum Cable with 1/2 in. Conduit Connector
• Angle of Rotation: 90 degrees
• Valve Size: 0.5 inches
• End Fitting: Internal Thread
