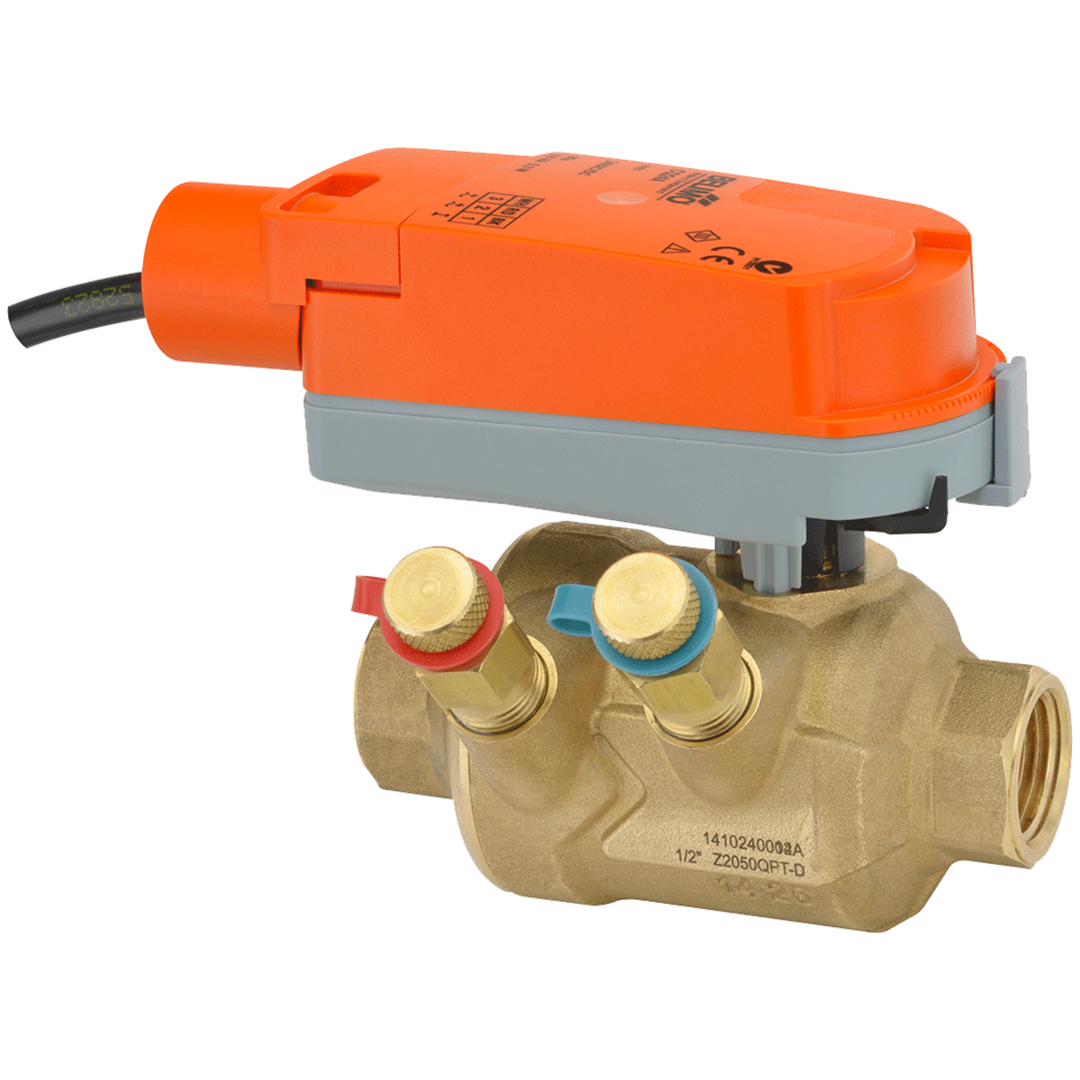

Belimo Z2050QPT-B+CQX24-3 ZoneTight (PIQCV) 1/2 2-way 0.9

Product Description

The Belimo Z2050QPT-B+CQX24-3 is a configurable valve actuator designed for precise control in HVAC systems. This model operates on AC/DC twenty-four volts and is suitable for use with chilled or hot water. The actuator supports On/Off, and floating point control methods, making it versatile for various applications.

• Non fail-safe with mechanical PI technology
• Pressure independent for reliable operation
• Stainless steel trim for durability

Product Highlights

This actuator is ideal for controlling flow in heating and cooling systems. With a maximum flow rate of 0.9 and an angle of rotation of ninety degrees, it fits various setups efficiently.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QPT-B+CQX24-3

Technical Specifications

• Valve Size: 0.5 inches [15]
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA2
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 0.3 W
• Running Time (Motor): 75 seconds / 90 degrees
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
