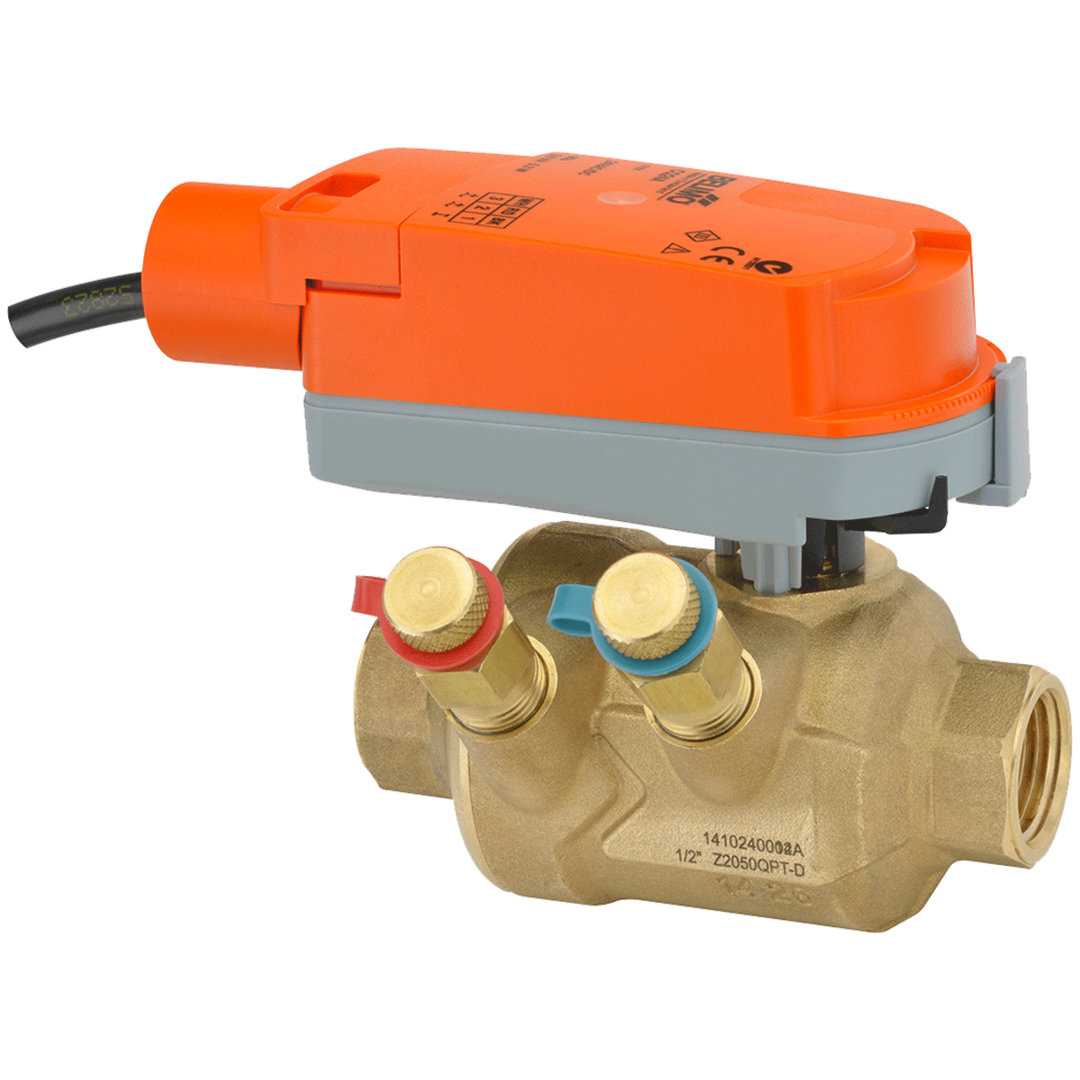

Belimo Z2050QPT-B+CQBUP-3 ZoneTight 0.5 2 Way 0.9 GPM w/ Non-Spg 110 to 240V

Product Description

Belimo Z2050QPT-B+CQBUP-3 is a ZoneTight valve designed for applications in commercial buildings. It operates within a flow range of 0.9 GPM and supports voltage between 110 to 240V. The pressure-independent technology allows for better control of heating and cooling systems.

• Flow Rate: 0.9 GPM
• Voltage: 110 to 240V
• Pressure Independent Technology

Product Highlights

This valve is suitable for spaces where higher close-off and dynamic balancing are necessary. It fits in limited space and can be installed without tools.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050QPT-B+CQBUP-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: Yes
• Valve Size: 0.5 [15]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA 2
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Voltage: AC 100 to 240 V
