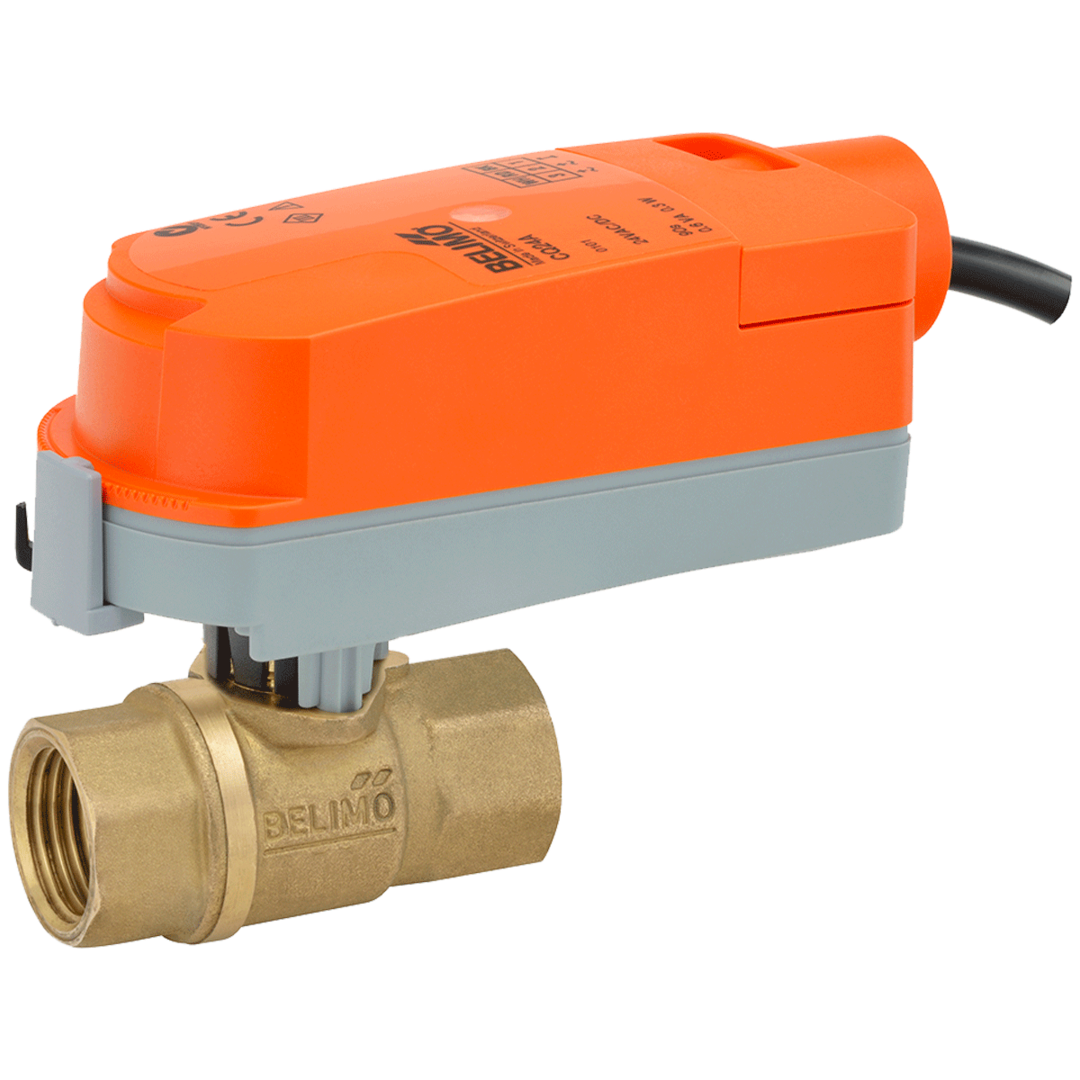

Belimo Z2050Q-J+CQXUP-3 | ZoneTight (QCV), 1/2, 2-way | Configurable Valve Actuator, Non fail-safe, AC100-240V, On/Off, Floating point

Product Description

The Belimo Z2050Q-J+CQXUP-3 is a configurable valve actuator designed for efficient flow control. Its specifications make it suitable for use with chilled or hot water systems. This valve actuator operates on an AC voltage range of one hundred to two hundred forty volts, providing flexibility for installation. The non fail-safe design allows it to be integrated into various applications in residential and commercial settings.

• Angle of rotation is ninety degrees.
• Features a controllable flow range of seventy-five B0.
• Internal thread for easy connection.

Product Highlights

Efficient actuator for two-way valve applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2050Q-J+CQXUP-3

Technical Specifications

• Cv: 5.9
• Fluid: Chilled or hot water up to sixty percent glycol
• Valve Size: 0.5 [15]
• Control Type: Floating/3-point
• Electrical Connection: Cable
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75s / 90B0
• Degree of Protection: IP40 NEMA2
