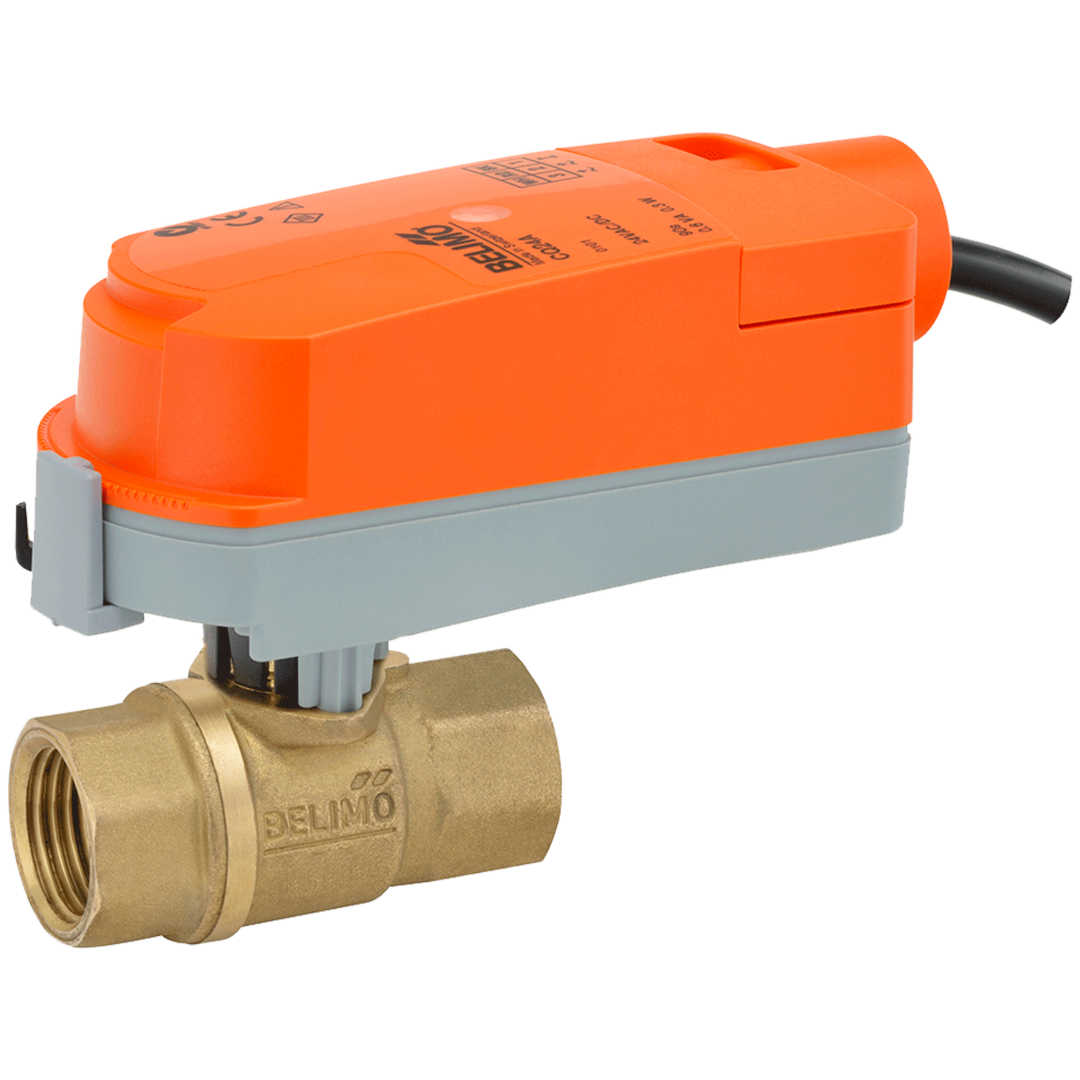

Belimo Z2050Q-J+CQX24-3 ZoneTight (QCV) 1/2 2-way Configurable Valve Actuator

Product Description

The Belimo Z2050Q-J+CQX24-3 is a zone valve actuator designed for use in large commercial buildings. This device supports higher close-off pressures and allows flow adjustments. It is suitable for a variety of applications including unit ventilators, fan coils, VAV reheat coils, fin tube casings, radiant panels, and duct coils. Its compact design fits into tight spaces and allows for tool-free assembly.

• Function: Non fail-safe actuator for on/off and floating point control.
• Power Supply: Compatible with AC/DC 24V systems.
• Rotational Range: Features a 90-degree rotation for maximum efficiency.

Product Highlights

This actuator enhances control and efficiency in HVAC systems, making it a reliable choice for various applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050Q-J+CQX24-3

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 5.9
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pattern: 2-way
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 0.3 W
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
