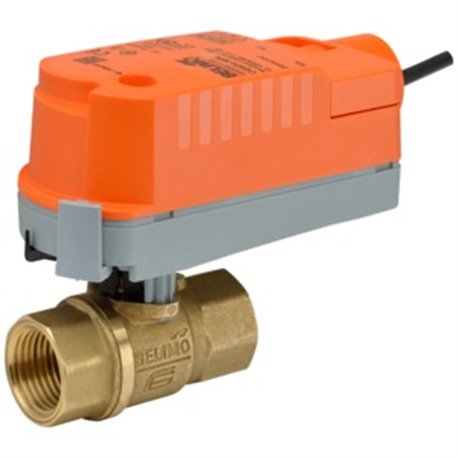

Belimo Z2050Q-J+CQKB24-S-RR Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo Z2050Q-J+CQKB24-S-RR is a Zonetight valve assembly designed for HVAC systems. This two-way valve is ideal for 1/2 inch connections and supports electronic fail-safe operations. It is well-suited for use in large commercial buildings where higher close-off capabilities are needed. Its design accommodates space-restricted areas, allowing for assembly without tools.

• Quick connect valve with NPT connection
• 5.9 Cv flow capacity
• Direct coupled actuator, 12 in-lb torque

Product Highlights

The valve can manage chilled and hot water applications and features a robust forged brass body. It provides effective flow control in various HVAC setups.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050Q-J+CQKB24-S-RR

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, Hot Water, Up to 60% Glycol
• Auxiliary Switch: 1 x SPST
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 104 F (1.7 C to 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
