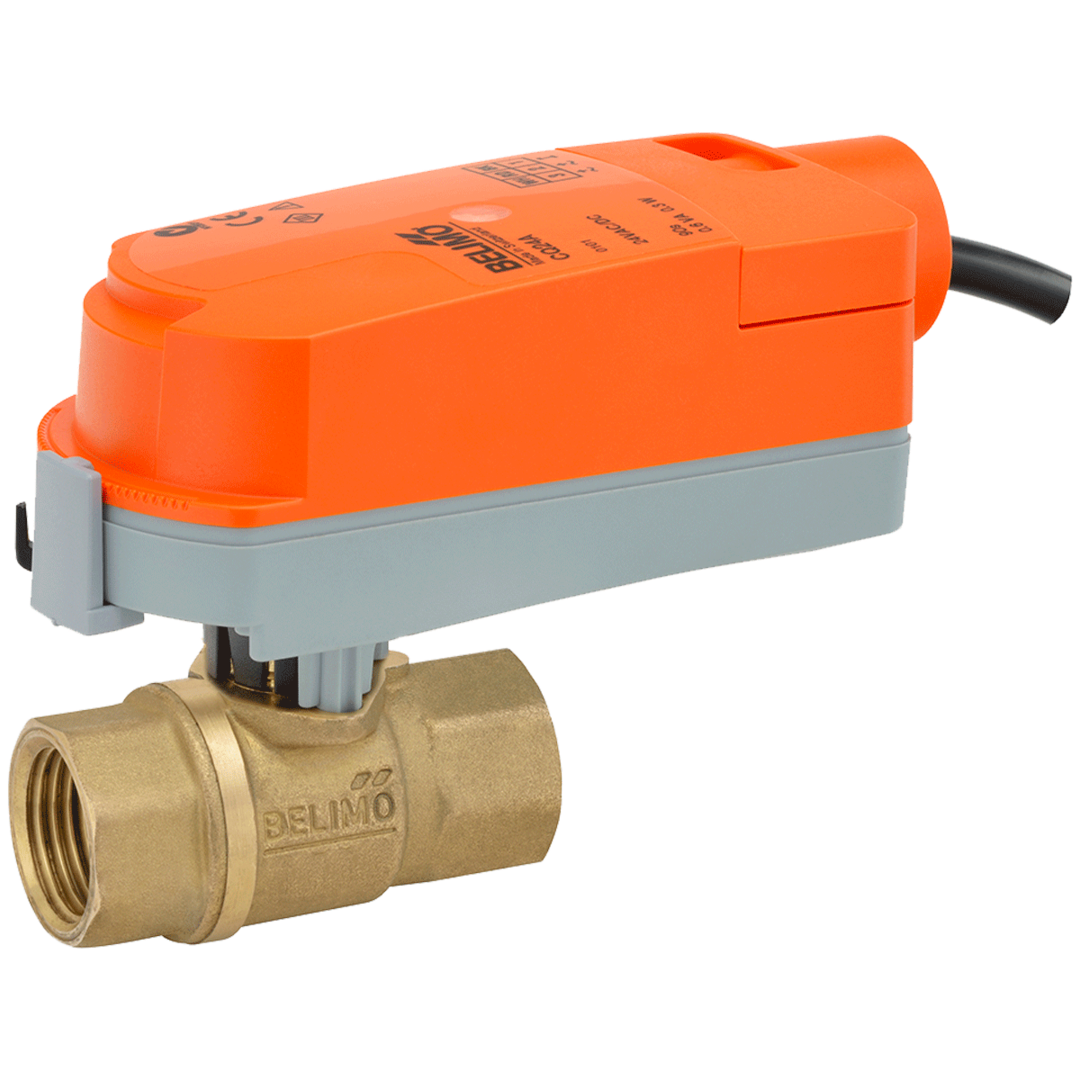

Belimo Z2050Q-J+CQBUP-3 Zonetight Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo Z2050Q-J+CQBUP-3 is a zonetight valve assembly designed for two-way control in HVAC systems. This model features a half-inch size and a flow coefficient (Cv) of 5.9. It is crafted from forged brass for durability and includes a chrome-plated brass ball and stem for reliable operation. Ideal for large commercial buildings, this valve can be easily installed in restricted spaces without the need for tools.

• Quick connect valve design for easy installation
• Direct coupled actuator for on/off or floating point control
• Operating range from 100 to 240 VAC

Product Highlights

This valve operates efficiently in both chilled and hot water systems, with a maximum glycol content of sixty percent. Its actuator is rated for twelve inch-pounds and does not spring return. The unit operates effectively in temperature ranges from thirty-five to one hundred four degrees Fahrenheit.

Product Information

Standard Information

• Brand: Belimo
• Part Number: Z2050Q-J+CQBUP-3

Technical Specifications

• Housing Rating: NEMA 2, IP40
• Service Type: Chilled, Hot Water, Up to 60% Glycol
• Power Consumption: 1 W Running, 0.7 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
