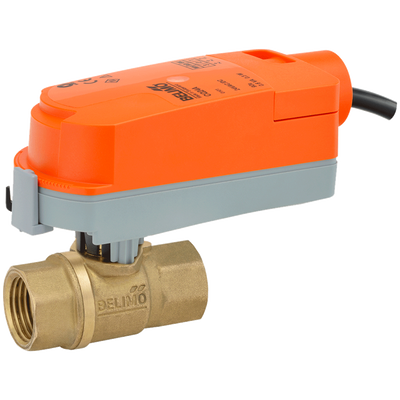

Belimo Z2050Q-F+CQXUP-3 | ZoneTight (QCV), 1/2, 2-way | Configurable Valve Actuator, Non fail-safe, AC100-240V, On/Off, Floating point | Z2050Q-F+CQXUP-3

Product Description

The Belimo Z2050Q-F+CQXUP-3 is a configurable valve actuator designed for controlling the flow of chilled or hot water with up to sixty percent glycol. This actuator operates as a two-way valve and is powered by alternating current ranging from one hundred to two hundred forty volts.

• Designed for floating point control and on/off operation.
• Constructed with chrome plated brass trim for durability.
• IP40 NEMA2 rated for protection against dust and water.

Product Highlights

The Belimo Z2050Q-F+CQXUP-3 allows for precise control in heating and cooling applications. It features a quick response time of seventy-five seconds for full rotation.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050Q-F+CQXUP-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 1.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 [15]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 seconds/90 degrees
• Voltage AC/DC: AC100...240 V
