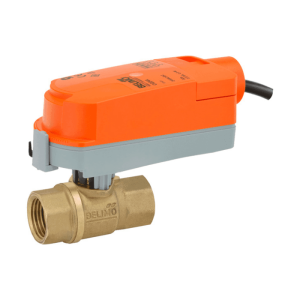

Belimo Z2050Q-F+CQKB24-SR-RR Zonetight Valve Assembly, 2 Way, 1/2 in.

Product Description

The Belimo Z2050Q-F+CQKB24-SR-RR is a zonetight valve assembly designed for easy integration in heating, ventilation, and air conditioning systems. This product features a compact design suitable for installations in space-restricted areas. The valve operates with a quick connect system, ensuring efficiency in large commercial buildings.

• Compact size for restricted spaces
• Low power consumption
• Zero leakage design

Product Highlights

This valve is ideal for applications requiring higher close-off performance and the capability to adjust flow accurately.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050Q-F+CQKB24-SR-RR

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Close-Off Pressure: 75 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 104 F (1.7 C To 40 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
