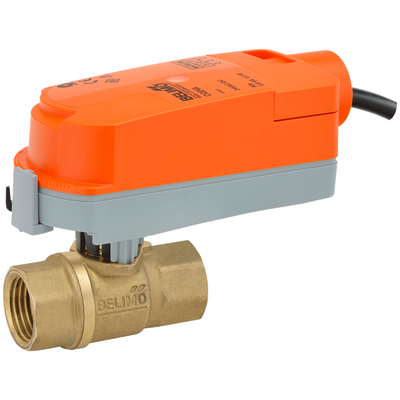

Belimo Z2050Q-F+CQBUP-3 | ZoneTight | 0.5 | 2 Way 1.4 Cv | w/ Non-Spring | 110 to 240V | On/Off/Floating

Product Description

The Belimo Z2050Q-F+CQBUP-3 is a zone control valve designed for efficient operation in HVAC systems. This product features a two-way design and operates as a non-spring actuator. The Z2050Q-F+CQBUP-3 is suitable for controlling chilled or hot water with up to sixty percent glycol. Its specifications make it ideal for various applications requiring precise control.

• Voltage: AC 100 to 240 volts
• Flow Rate: 1.4 Cv
• Angle of Rotation: 90 degrees

Product Highlights

This valve is designed for reliable performance in both heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050Q-F+CQBUP-3

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 1.4
• Pattern: 2-way
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pressure Independent: NO
• Trim: Chrome plated brass
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 0.7 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 100 to 240 V
